ENGINEERING KNOWLEDGE HANDBOOK
Painting & Decorative Coatings
A paint finish is only as durable as the substrate and preparation below it. Coating design therefore starts with substrate condition, moisture, contaminants, repair, primer compatibility, film build and curing environment before colour selection.
ENGINEERING FUNDAMENTALS
Painting & Decorative Coatings
Principles, details, best practice, inspection and maintainability — arranged as a visual technical guide rather than repetitive template sheets.
01
Engineering Fundamentals
Ideal dry-film thickness DFT ≈ wet-film thickness WFT × volume-solids fraction
View details →02
Wall paint
Matt, eggshell, washable and specialist interior systems
View details →03
Ceiling paint
Low-sheen finishes suited to grazing light
View details →04
Timber coatings
PU, lacquer, stain and clear finishes
View details →05
Metal coatings
Primer, epoxy / PU and decorative finish where applicable
View details →06
Feature coatings
Textured, metallic, microcement-like or decorative systems
View details →07

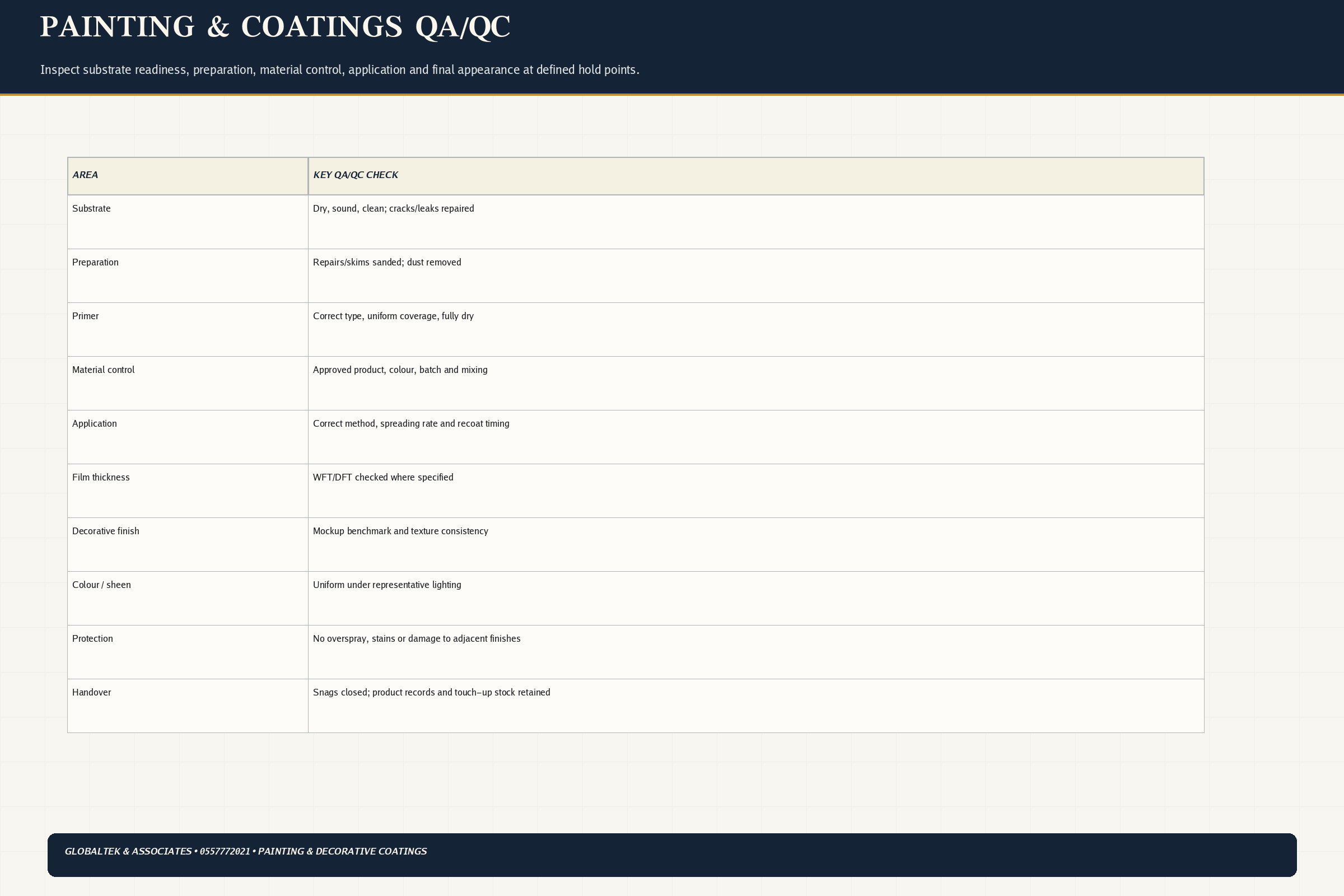

Inspection & Testing
Substrate is dry, sound and correctly prepared
View details →08
Installation Sequence
Apply controlled final colour / sheen after dusty works are complete
View details →09

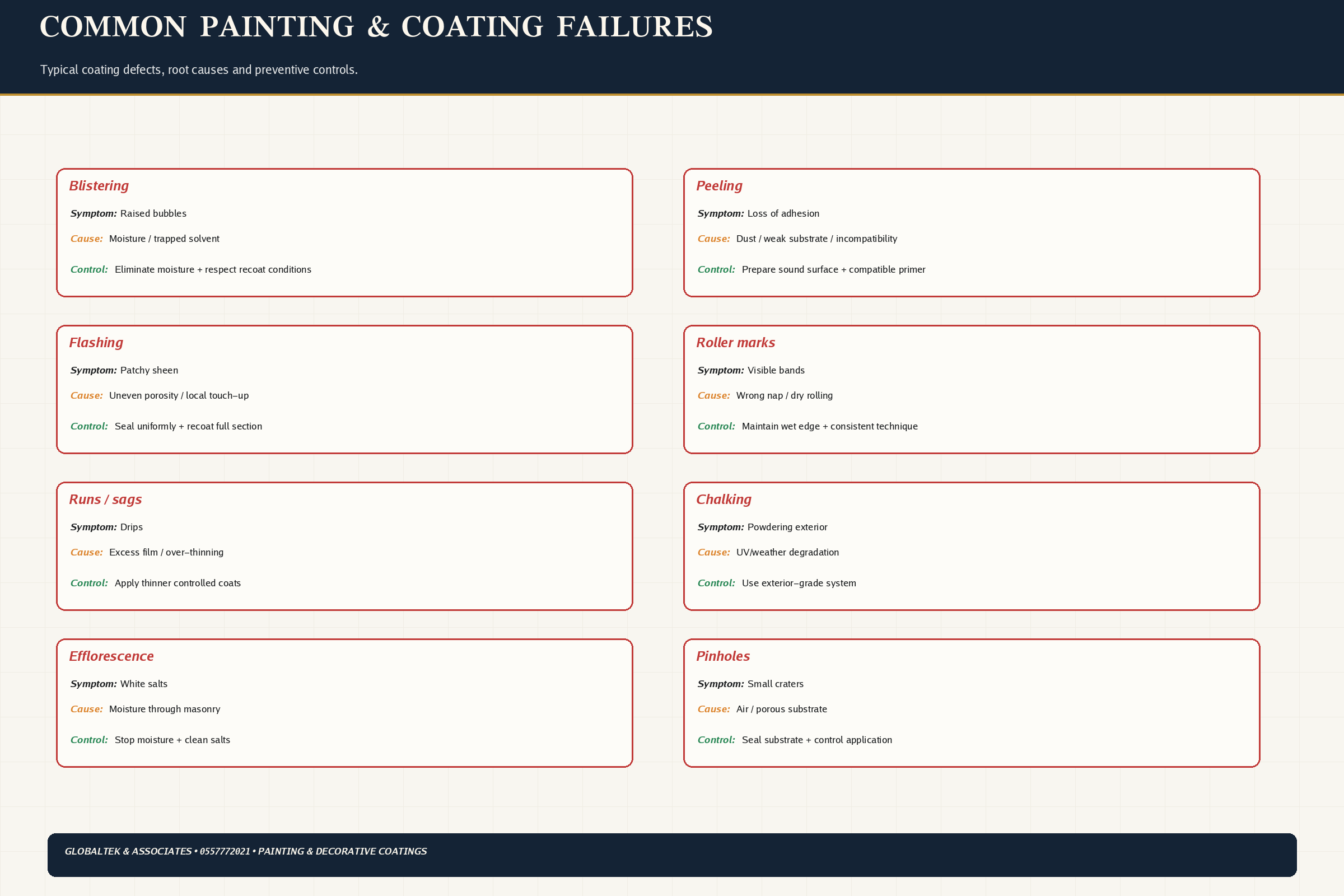

Common Failures
Painting damp gypsum or plaster
View details →10
Quality Checklist
Primer is compatible with substrate and finish system
View details →11

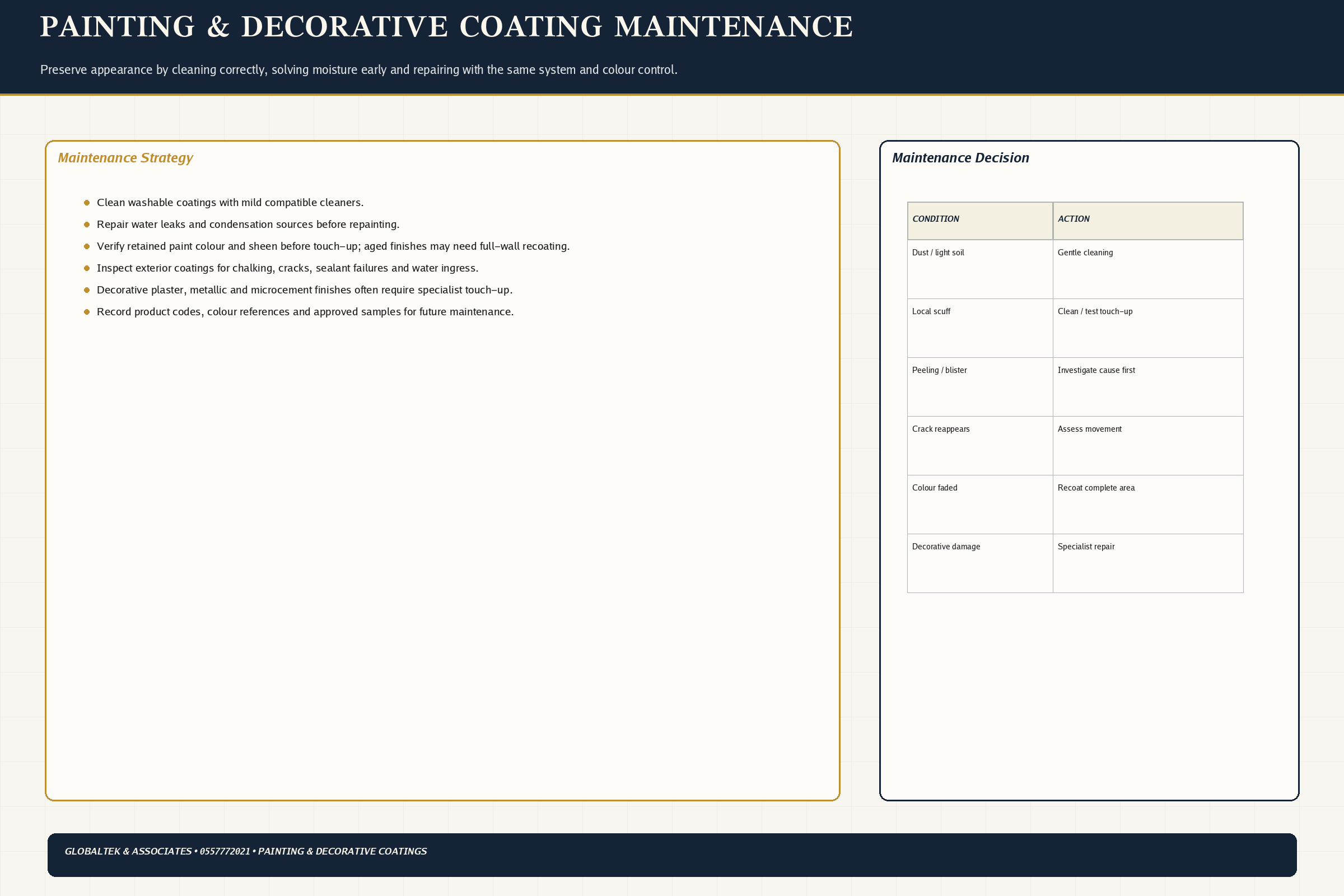

Maintenance
Clean according to sheen / washability rating
View details →12
Standards & References
Manufacturer technical data sheets for substrate, primer, coverage and drying
View details →01 · OVERVIEW
Understand the system before the detail
Like a manufacturer technical handbook, the guide starts with performance intent and then moves through components, execution, verification and maintenance.
What to expect on a project
Expect most of the effort to happen before the final colour. Cracks, moisture, contamination, unevenness and previous coatings must be addressed; then primer and build coats are selected for the substrate. Final sheen should be reviewed under actual lighting.
01Protect adjacent work and establish safe access
02Repair cracks/voids and remove unsound material
03Sand, clean and de-dust/degrease as required
04Use the compatible primer for substrate and topcoat
05Apply build and finish coats within manufacturer recoat windows
06Inspect colour, sheen, coverage, defects and final protection under representative lighting

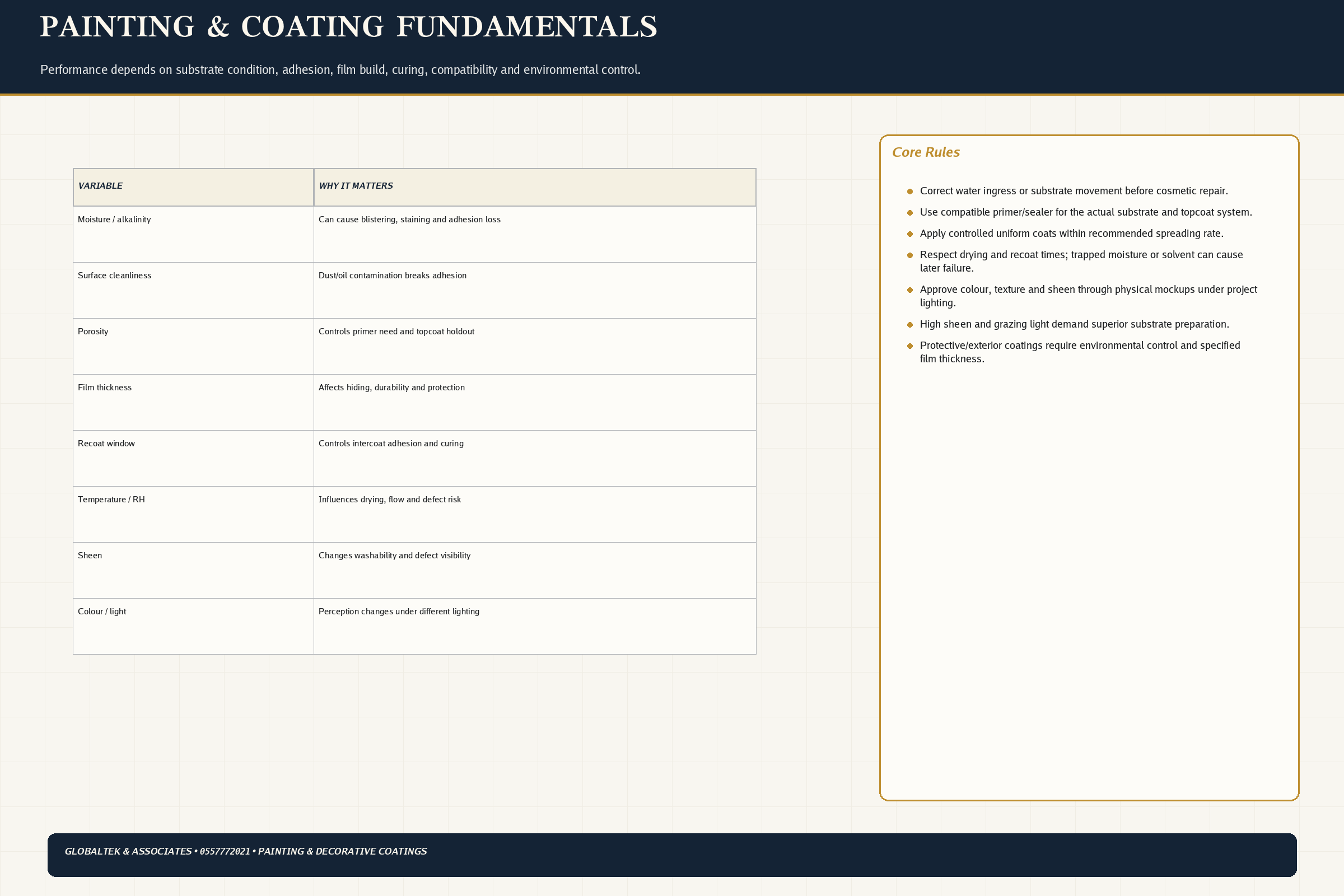

02 · ENGINEERING FUNDAMENTALS
Why the system behaves the way it does
Engineering is easier to remember when the principle is read beside the detail. These notes connect the formula or physical behaviour to the relevant project sketch.
ENGINEERING NOTE

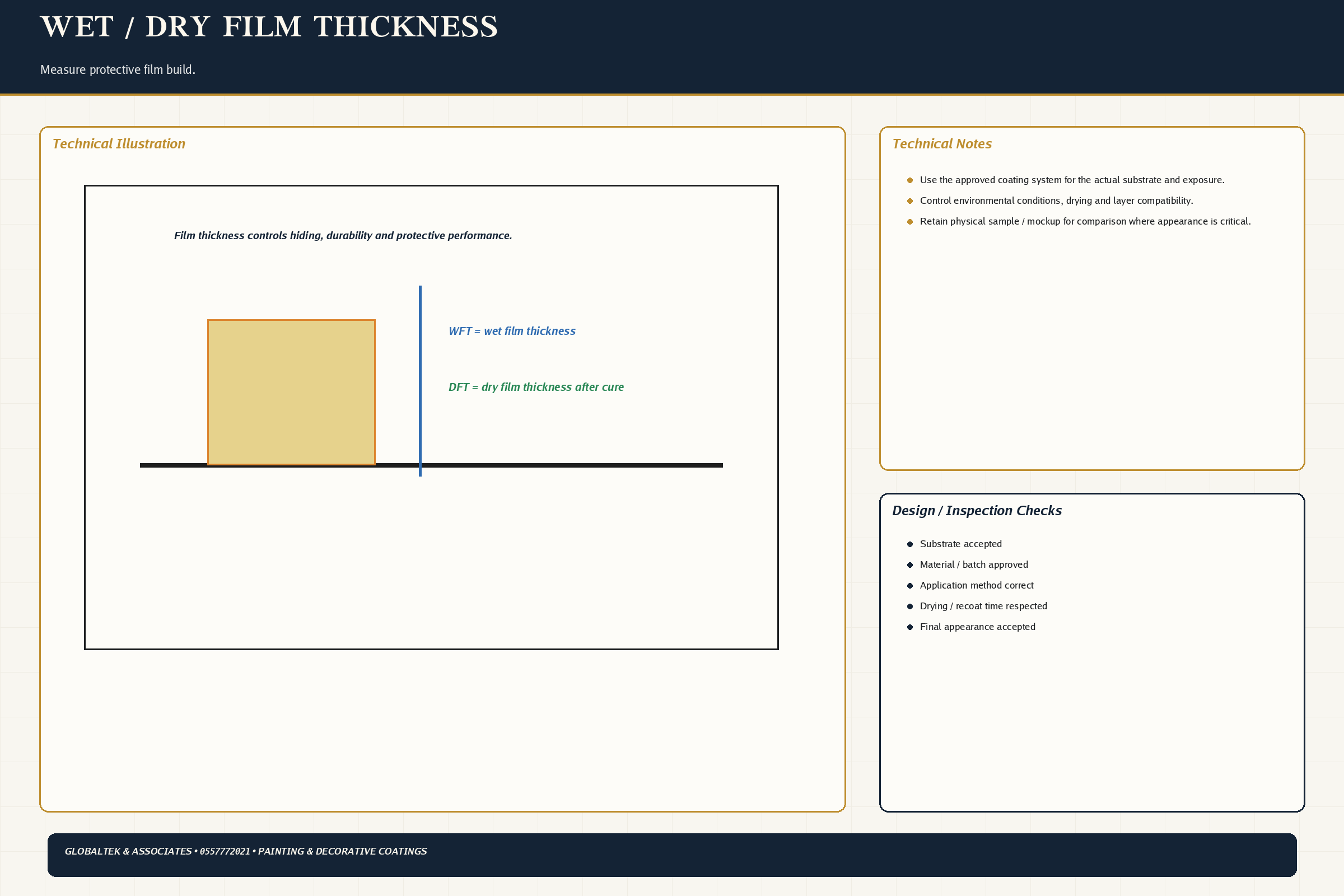

Ideal dry-film thickness DFT ≈ wet-film thickness WFT × volume-solids fraction
ENGINEERING NOTE
Theoretical spreading rate is governed by volume solids and target DFT; practical consumption increases with roughness, loss and application method
ENGINEERING NOTE
For condensation-sensitive coating, substrate temperature must remain safely above dew point according to the coating manufacturer
The uploaded painting guide follows the practical sequence of protection, filling, smoothing, dust removal, degreasing, priming and successive coats. That sequence is retained here as an original technical workflow rather than copied wording or photography.
Primer is not a universal undercoat. Porous mineral surfaces, previously painted walls, timber and ferrous/non-ferrous metals can require different preparation and primer chemistry.

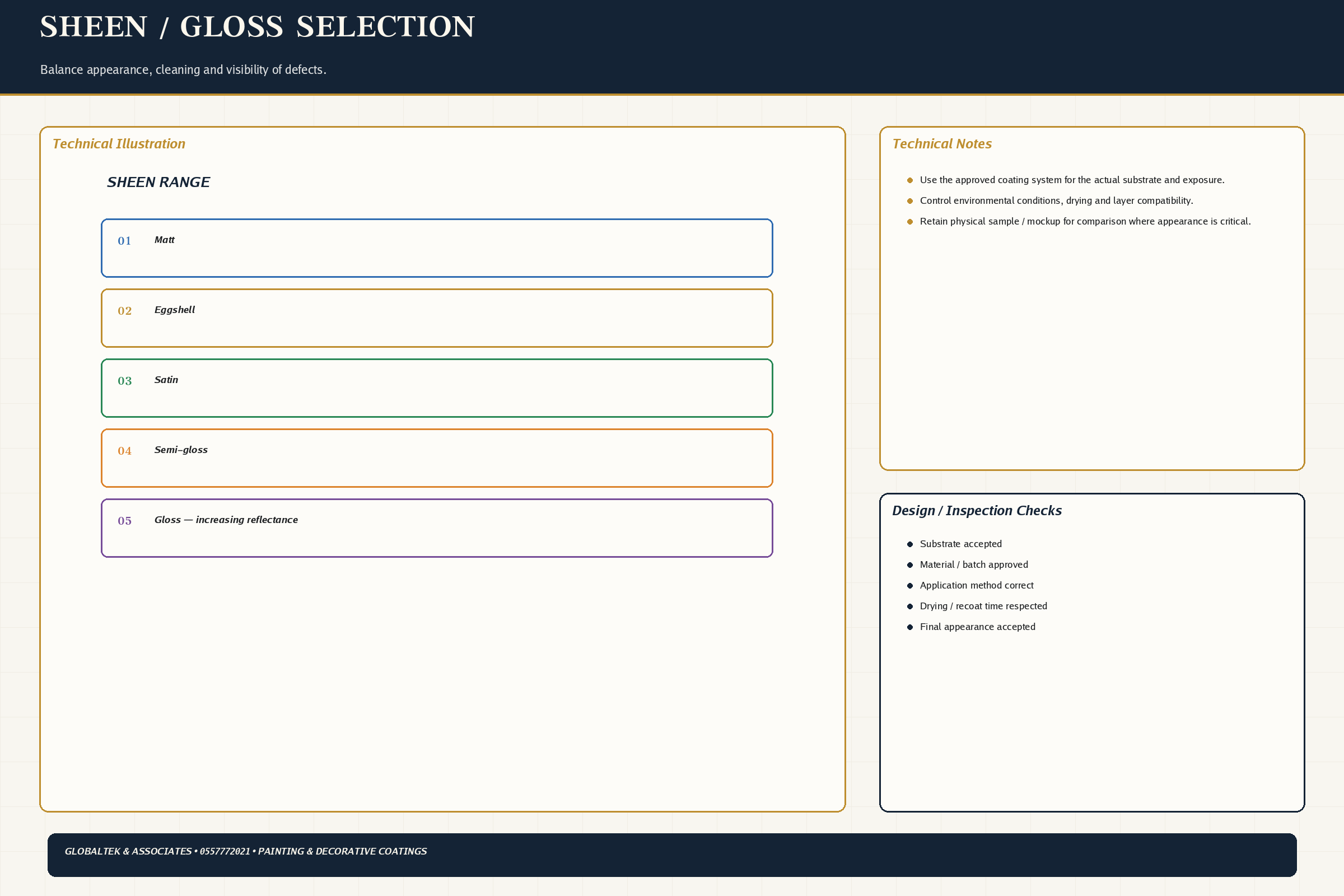

Uniform appearance depends on film continuity, wet-edge control, consistent roller/brush technique, lighting and batch/colour control. Touch-up can flash differently from the original coat if sheen, absorption or application method differs.
03 · SYSTEM WORKFLOW
From requirement to verified handover
Each stage now uses a discipline-specific engineering illustration. The original 304-library sheets remain available in the technical drawing reader below.

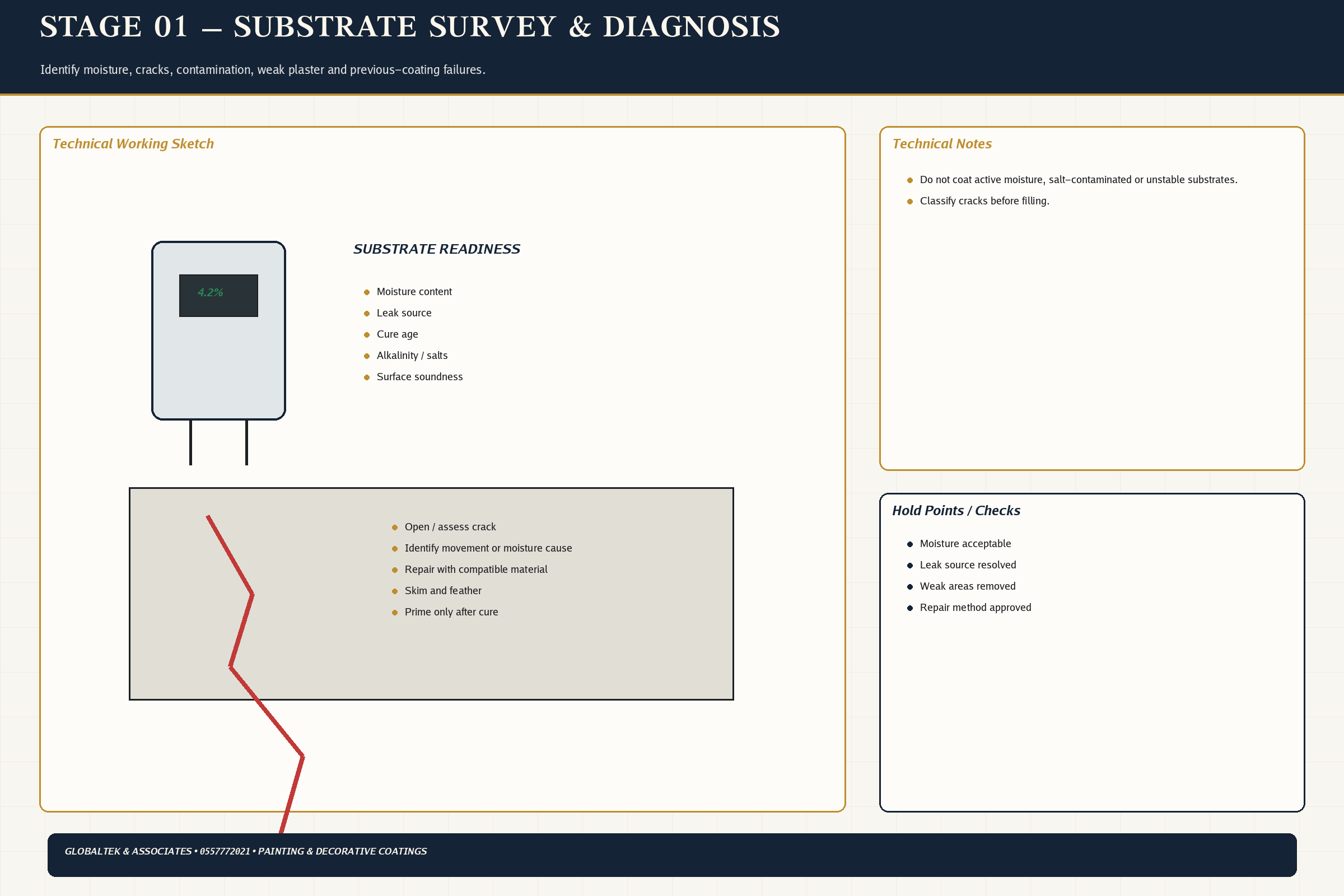

STAGE 01 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 01
Substrate inspection
Identify moisture, cracks, contamination, weak previous coating and surface defects
Engineering intent
Do not coat damp substrates outside manufacturer limits
Inspection / hold point
Substrate is dry, sound and correctly prepared
Best-practice control
Finish wet trades and solve leaks before painting
Failure to avoid
Painting damp gypsum or plaster
Handover / maintainability
Clean according to sheen / washability rating

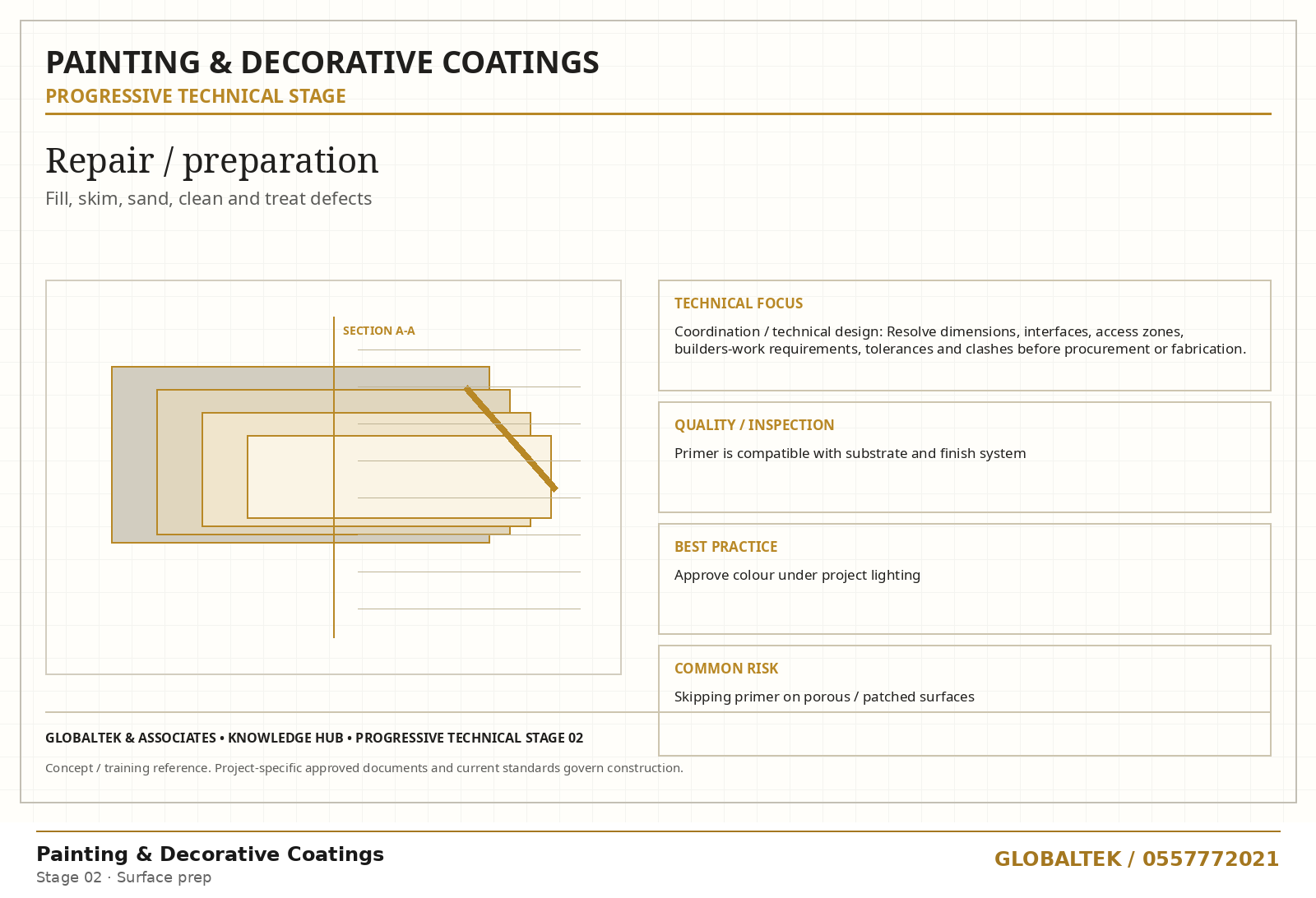

STAGE 02 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 02

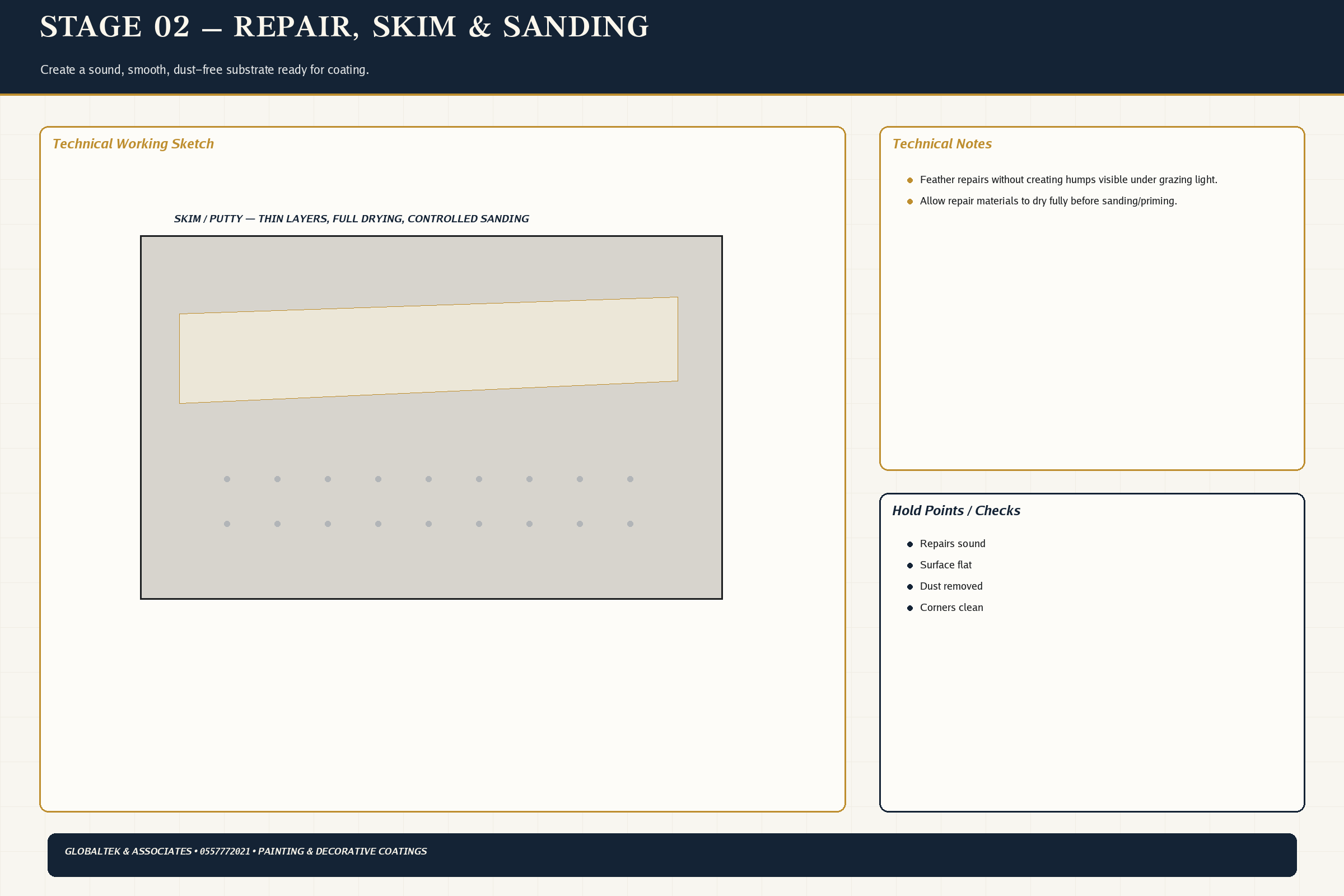

Repair / preparation
Fill, skim, sand, clean and treat defects
Engineering intent
Sand / skim to finish level appropriate to final sheen and lighting
Inspection / hold point
Primer is compatible with substrate and finish system
Best-practice control

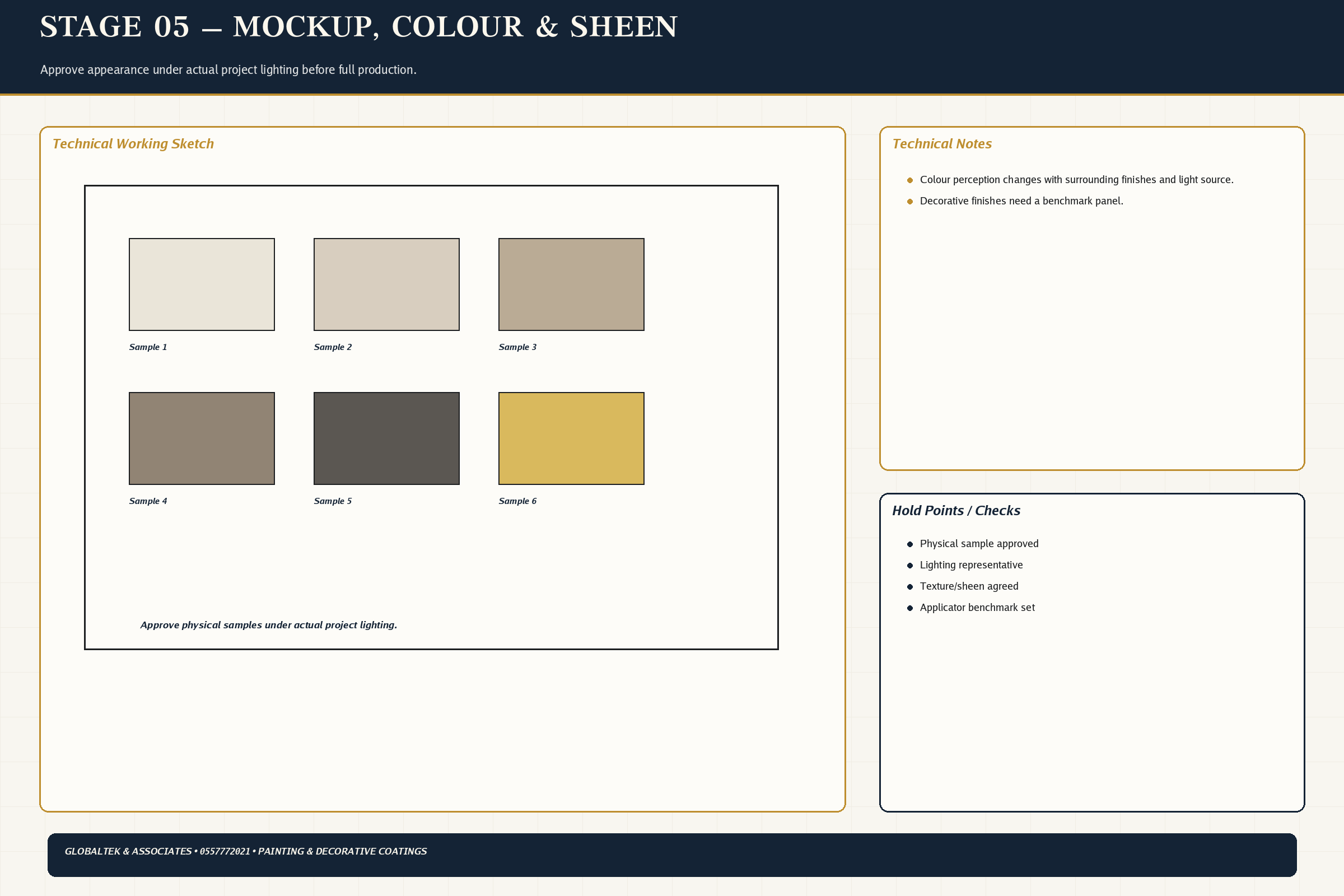

Approve colour under project lighting
Failure to avoid
Skipping primer on porous / patched surfaces
Handover / maintainability
Touch up with retained batch / colour reference after proper surface prep

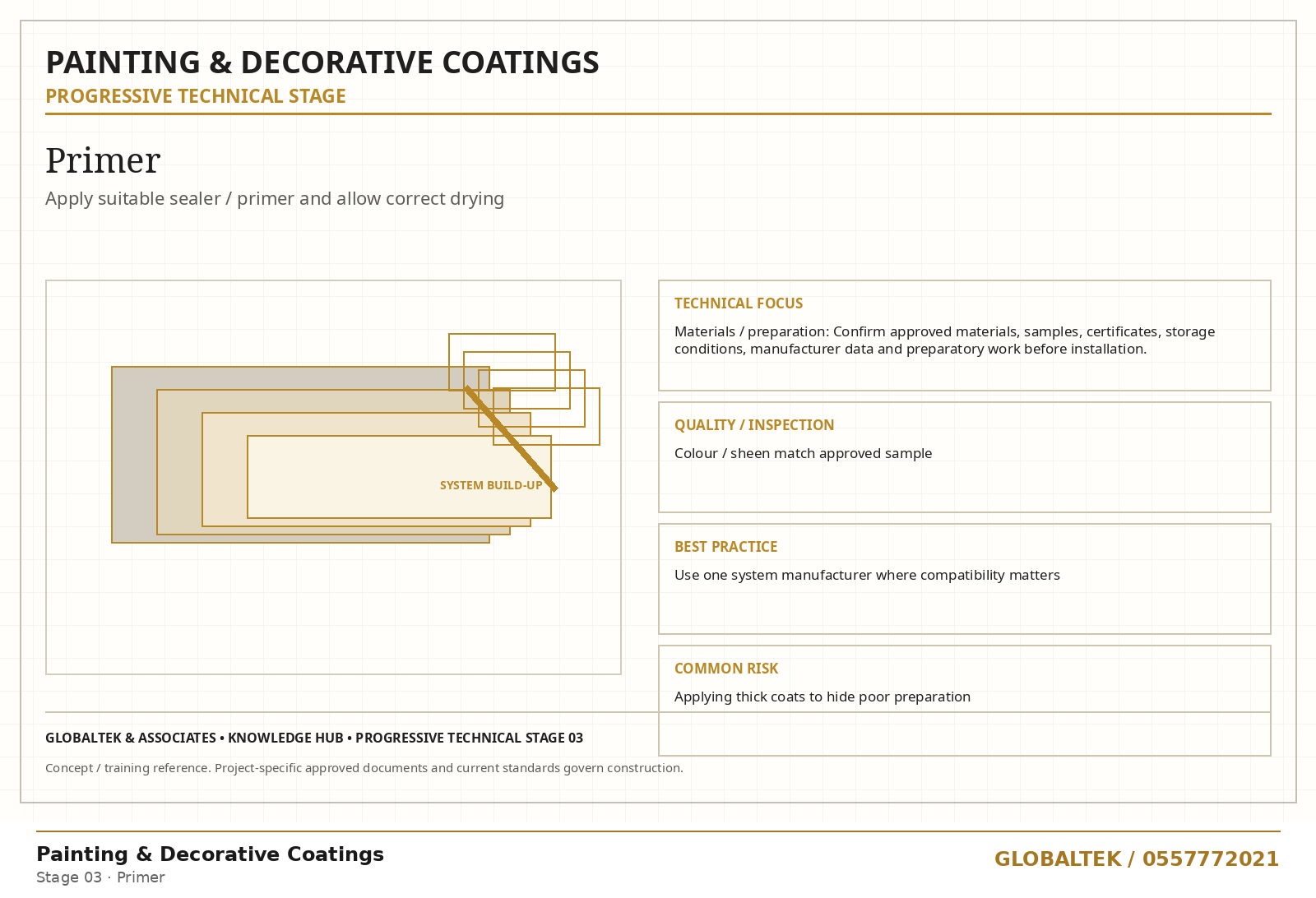

STAGE 03 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 03

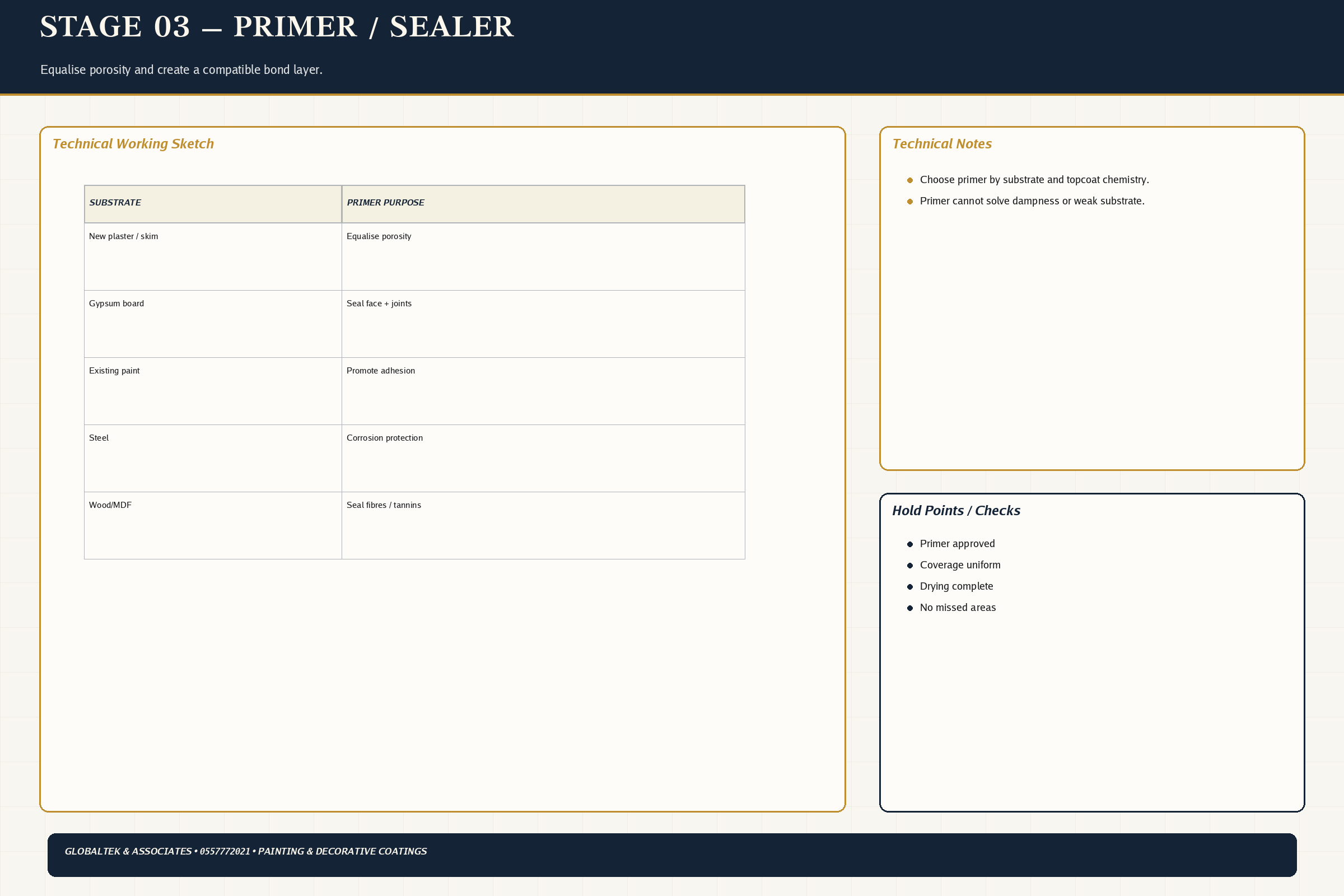

Primer
Apply suitable sealer / primer and allow correct drying
Engineering intent
Match porous, alkaline, stained, timber or metal substrate
Inspection / hold point
Colour / sheen match approved sample
Best-practice control
Use one system manufacturer where compatibility matters
Failure to avoid
Applying thick coats to hide poor preparation
Handover / maintainability
Investigate moisture staining before repainting

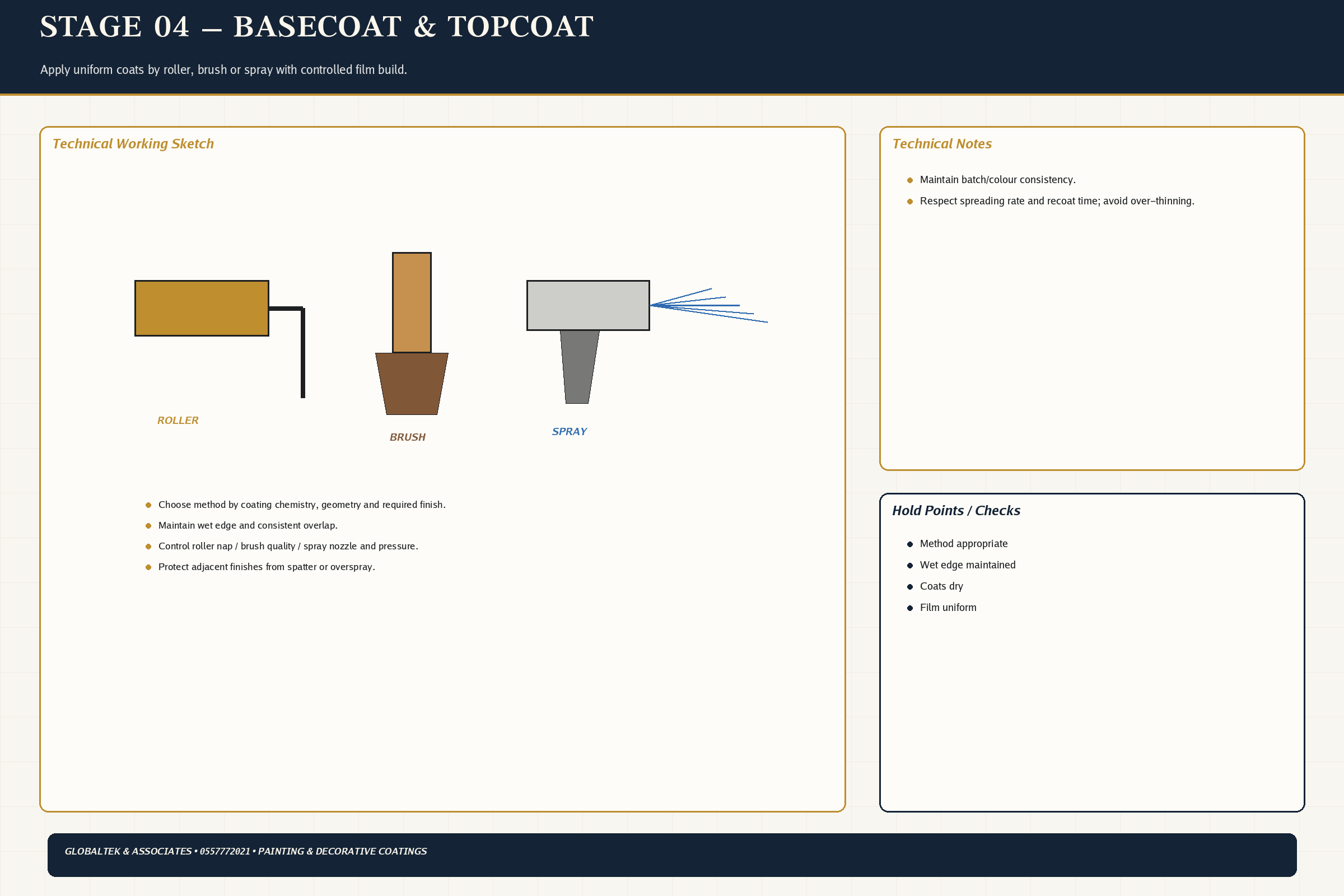

STAGE 04 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 04
Build coats
Apply intermediate coats with sanding where required
Engineering intent
Apply required number and film build rather than trying to cover in one heavy coat
Inspection / hold point

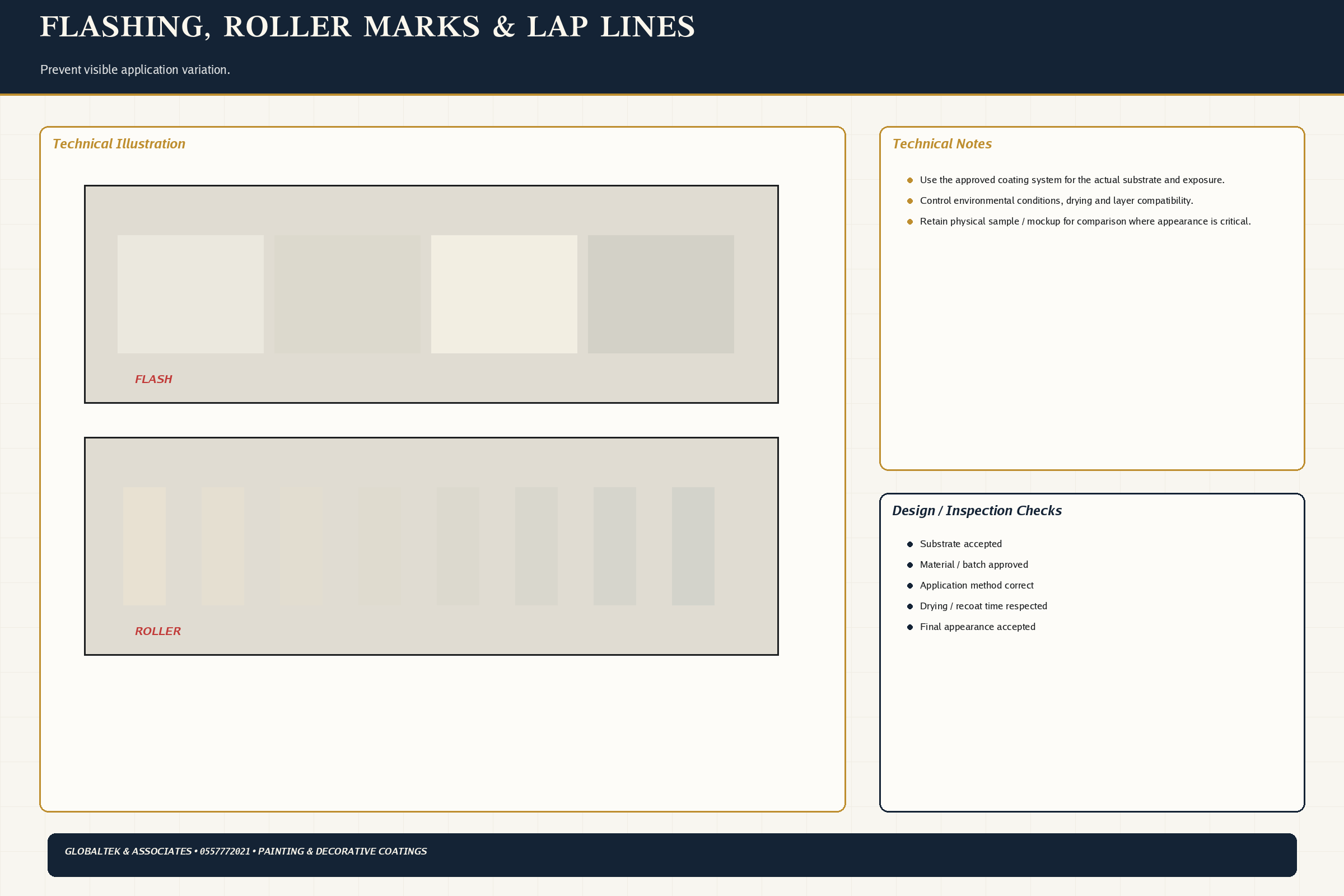

Coverage is uniform without roller marks, flashing or contamination
Best-practice control
Maintain clean dust-free conditions for final coats
Failure to avoid
Touching up glossy walls in isolated spots that flash under light
Handover / maintainability
Maintain sealants so cracks do not repeatedly appear at interfaces

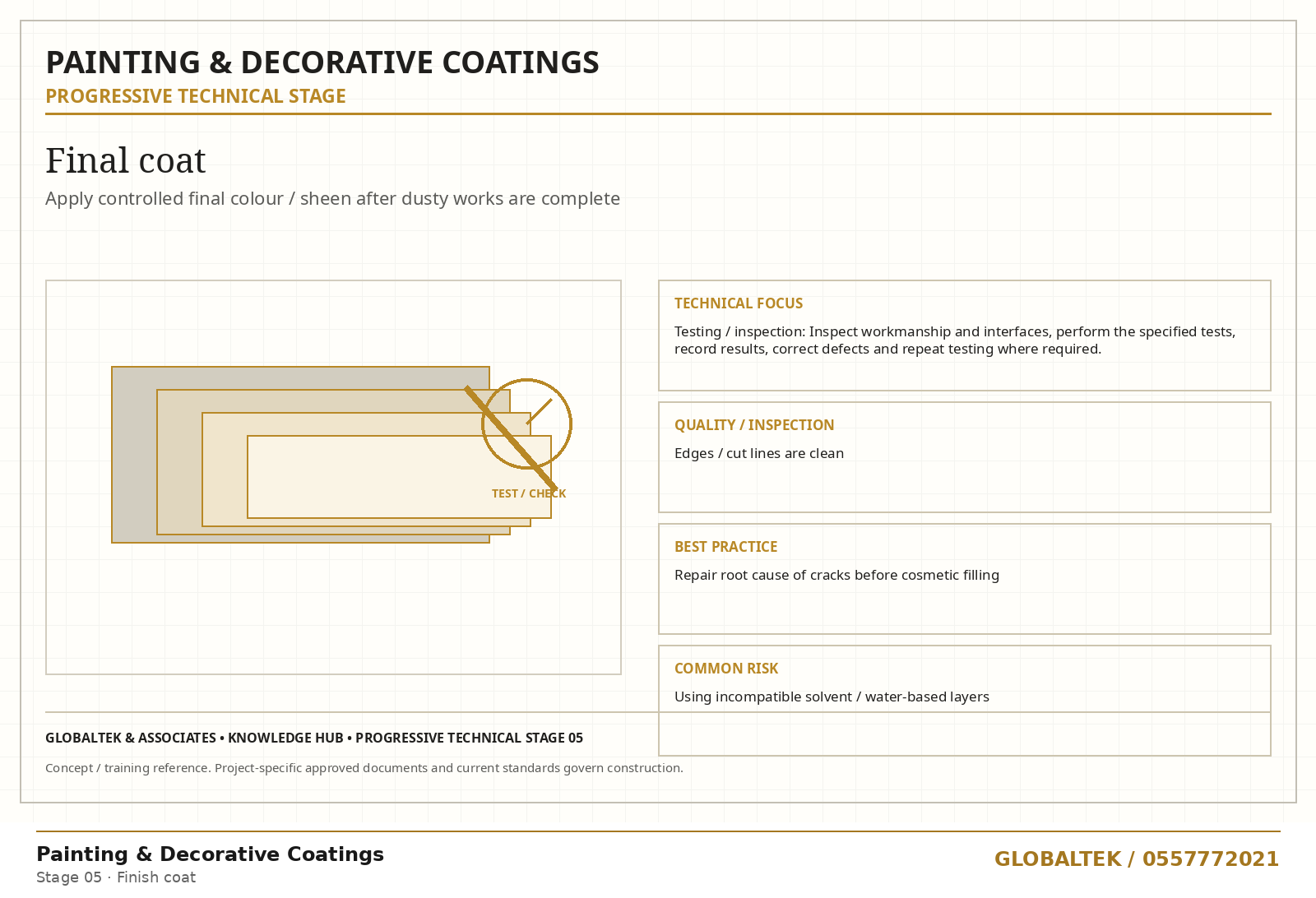

STAGE 05 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 05
Final coat
Apply controlled final colour / sheen after dusty works are complete
Engineering intent

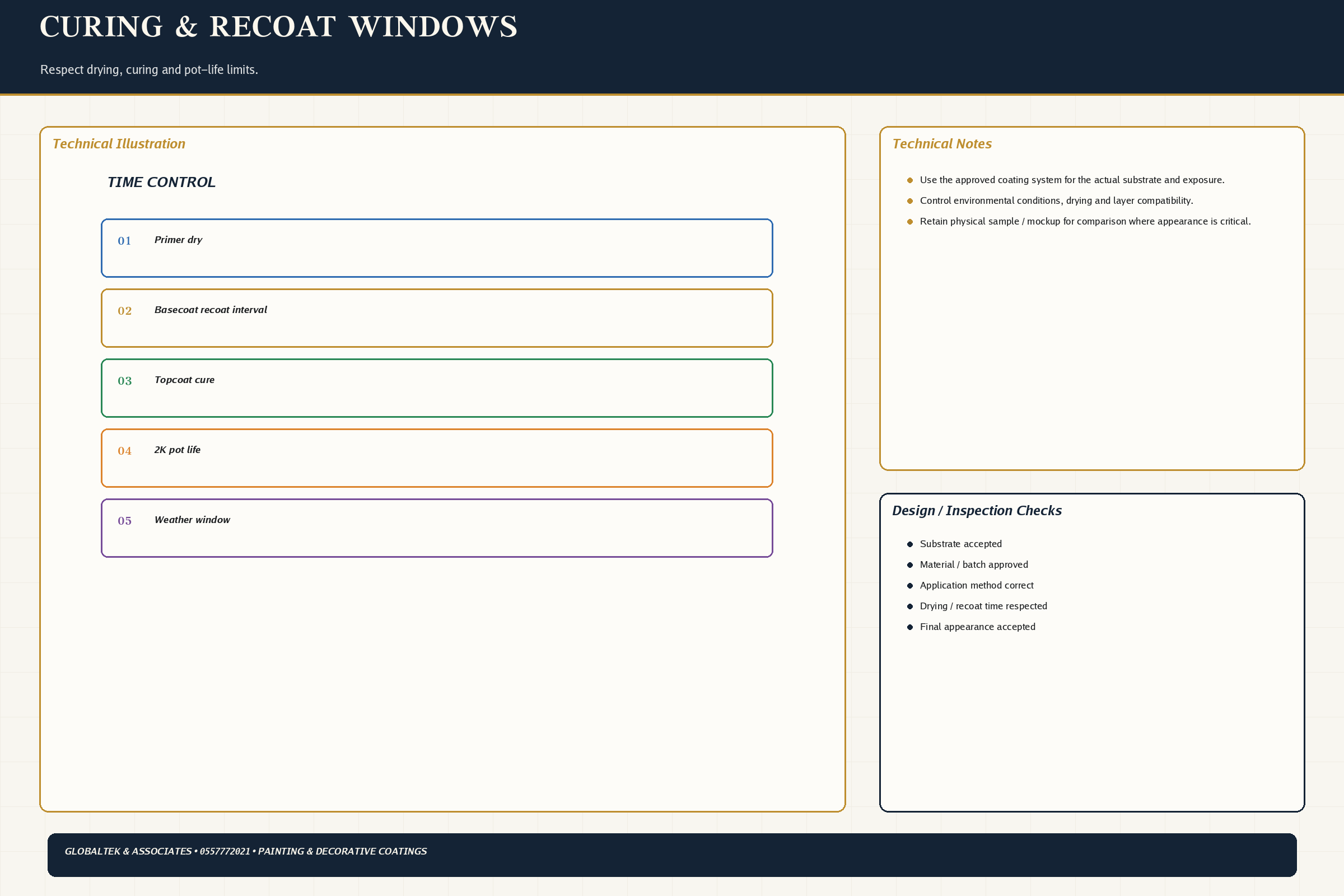

Respect recoat time and ventilation requirements
Inspection / hold point
Edges / cut lines are clean
Best-practice control
Repair root cause of cracks before cosmetic filling
Failure to avoid
Using incompatible solvent / water-based layers
Handover / maintainability
Avoid aggressive cleaners on decorative / metallic coatings

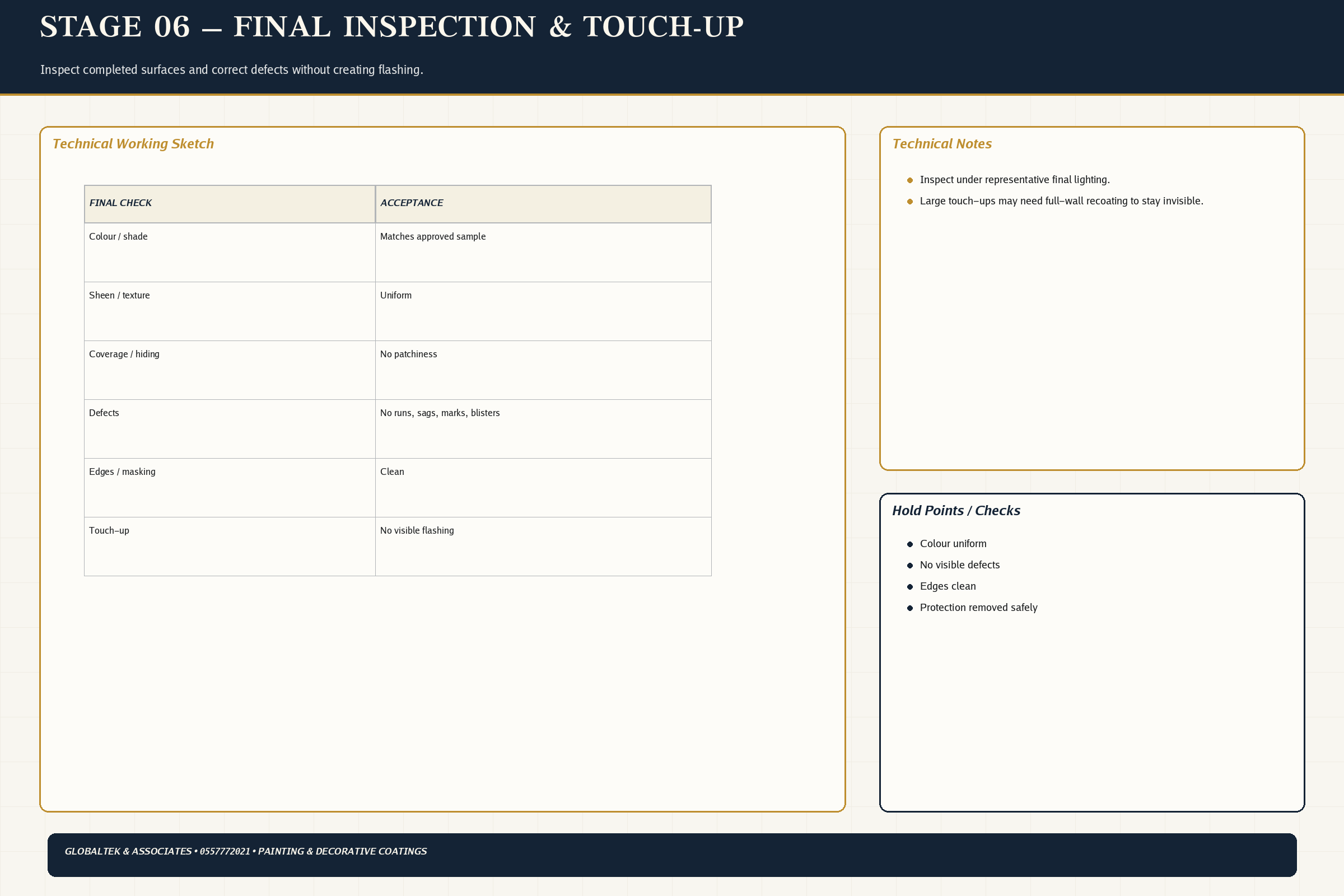

STAGE 06 · OPEN ORIGINAL 304-LIBRARY PLATE ↗STAGE 06
Snag / touch-up
Inspect in final lighting, repair defects and protect until handover
Engineering intent
Use consistent batch / tinting and box paint for large critical areas
Inspection / hold point
Final inspection is under representative lighting
Best-practice control
Keep touch-up paint labelled by room / colour code
Failure to avoid
Painting before ceiling / MEP dusty work is finished
Handover / maintainability
Recoat high-wear areas when film is worn rather than after substrate damage
04 · TECHNICAL CHAPTERS
Sub-activities and system details
Every chapter uses the matching discipline drawing. The article shows a focused crop for readability; clicking it opens the complete branded original sheet.
01Wall paint02Ceiling paint03Timber coatings04Metal coatings05Feature coatings06Repair07Primer08Protection
SUB-ACTIVITY 01 · Wall paint · OPEN FULL PLATE ↗SUB-ACTIVITY 01
Wall paint
Matt, eggshell, washable and specialist interior systems
What the drawing is showing
Matt, eggshell, washable and specialist interior systems Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.

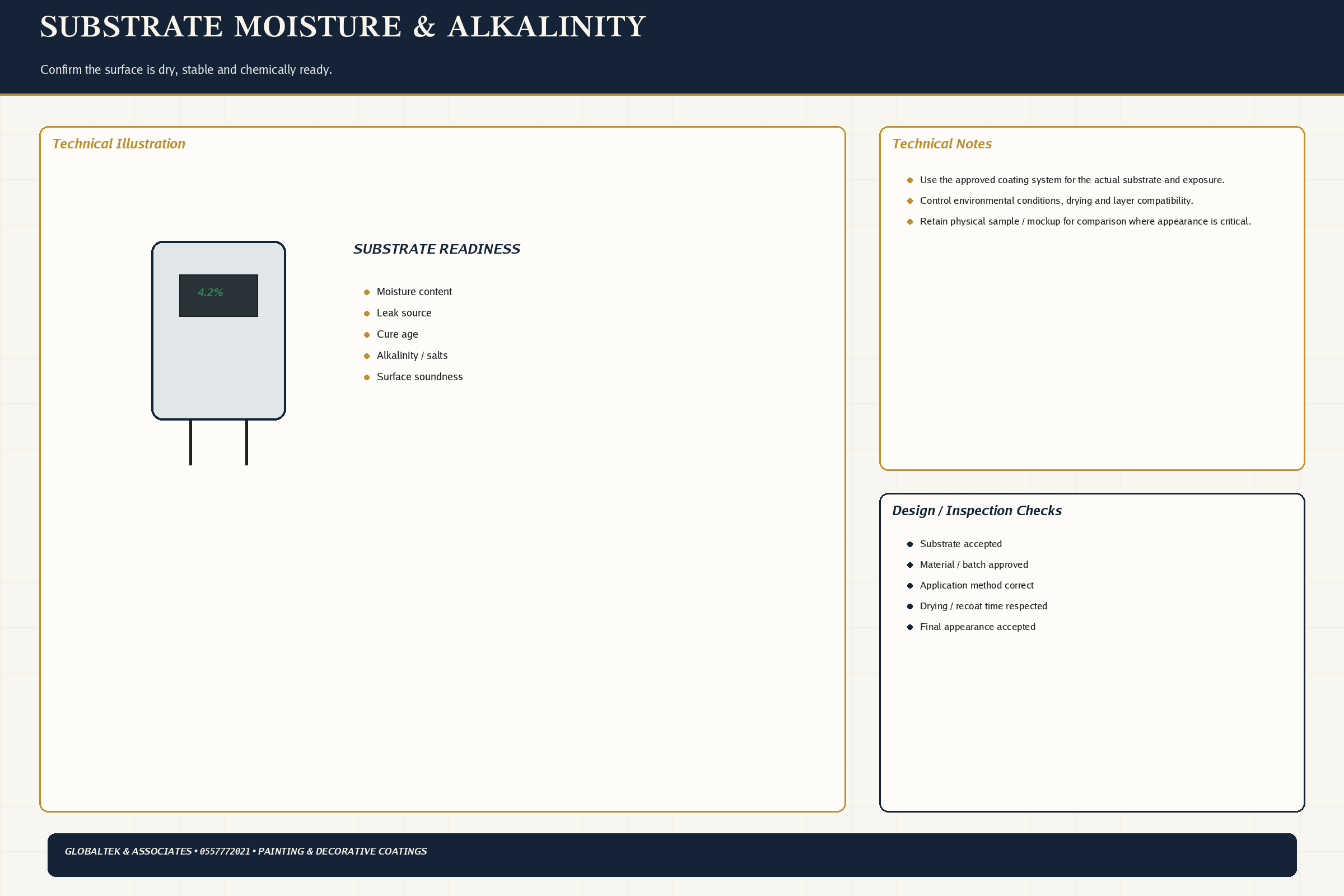

Moisture
Do not coat damp substrates outside manufacturer limits
Inspection / QA
Substrate is dry, sound and correctly prepared
Best practice
Finish wet trades and solve leaks before painting
Maintenance / long-term performance
Clean according to sheen / washability rating
SUB-ACTIVITY 02 · Ceiling paint · OPEN FULL PLATE ↗SUB-ACTIVITY 02
Ceiling paint
Low-sheen finishes suited to grazing light
What the drawing is showing
Low-sheen finishes suited to grazing light Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Surface profile
Sand / skim to finish level appropriate to final sheen and lighting
Inspection / QA
Primer is compatible with substrate and finish system
Best practice
Approve colour under project lighting
Maintenance / long-term performance
Touch up with retained batch / colour reference after proper surface prep
SUB-ACTIVITY 03 · Timber coatings · OPEN FULL PLATE ↗SUB-ACTIVITY 03
Timber coatings
PU, lacquer, stain and clear finishes
What the drawing is showing
PU, lacquer, stain and clear finishes Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Primer
Match porous, alkaline, stained, timber or metal substrate
Inspection / QA
Colour / sheen match approved sample
Best practice
Use one system manufacturer where compatibility matters
Maintenance / long-term performance
Investigate moisture staining before repainting
SUB-ACTIVITY 04 · Metal coatings · OPEN FULL PLATE ↗SUB-ACTIVITY 04

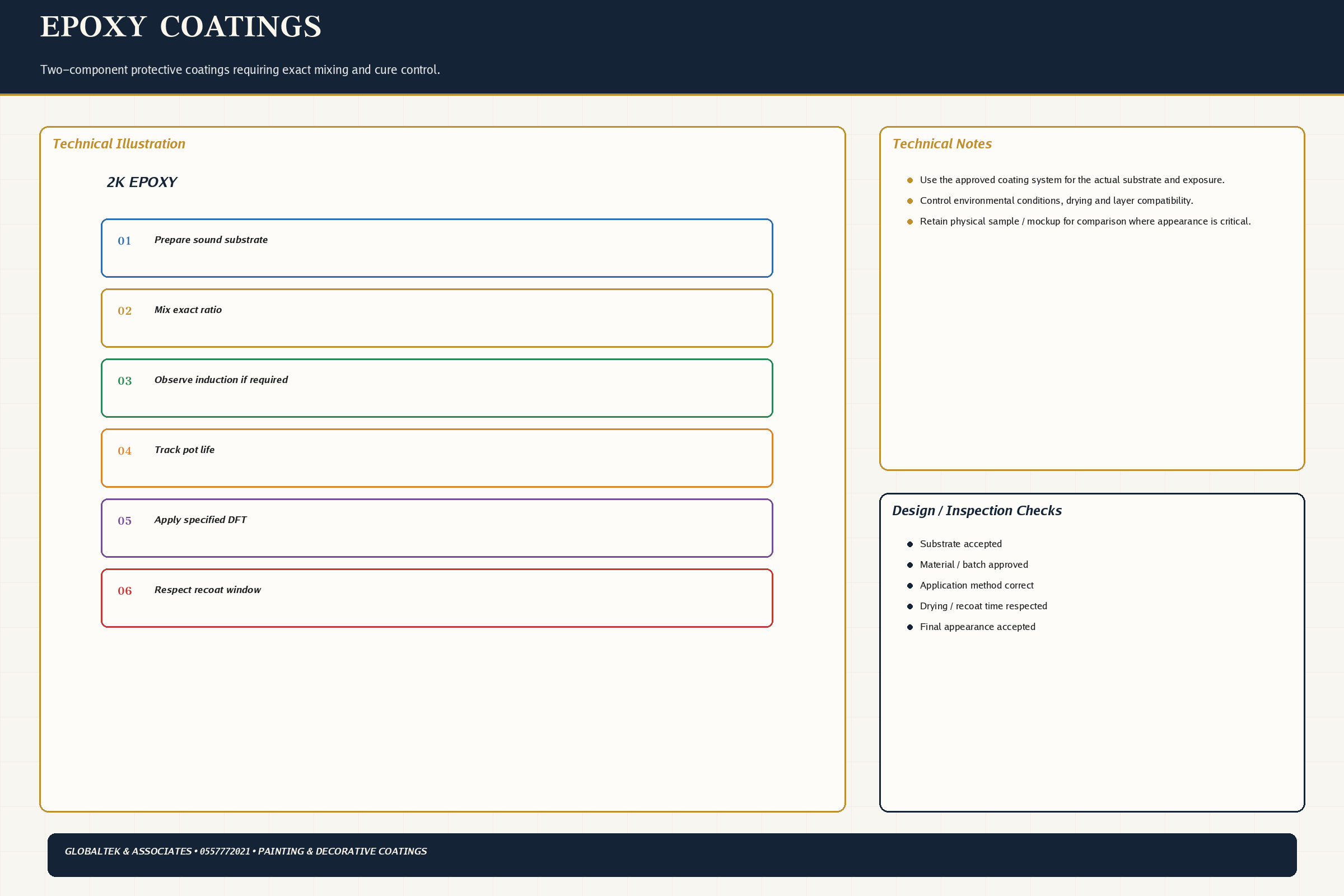

Metal coatings
Primer, epoxy / PU and decorative finish where applicable
What the drawing is showing
Primer, epoxy / PU and decorative finish where applicable Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Coat count
Apply required number and film build rather than trying to cover in one heavy coat
Inspection / QA
Coverage is uniform without roller marks, flashing or contamination
Best practice
Maintain clean dust-free conditions for final coats
Maintenance / long-term performance
Maintain sealants so cracks do not repeatedly appear at interfaces

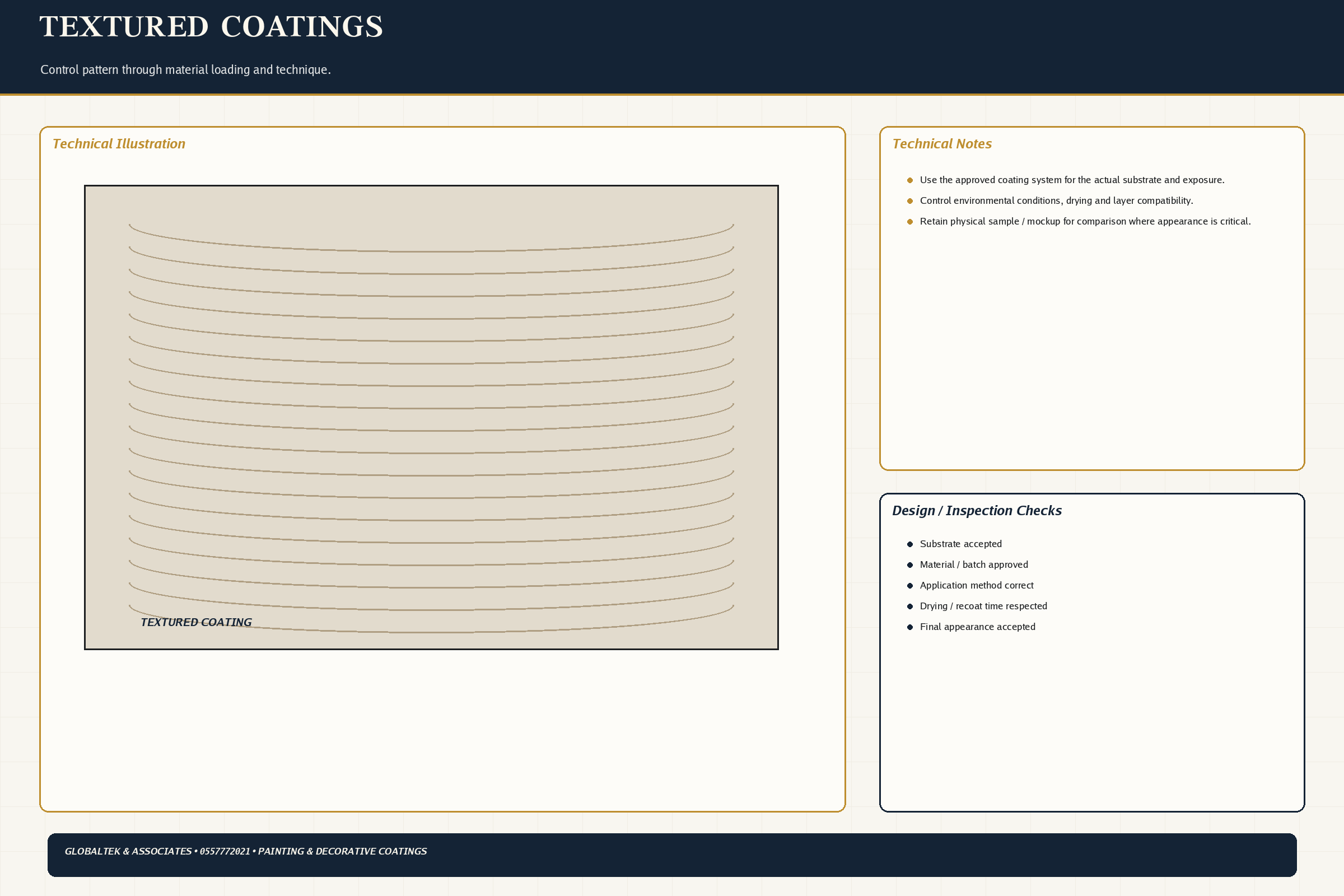

SUB-ACTIVITY 05 · Feature coatings · OPEN FULL PLATE ↗SUB-ACTIVITY 05

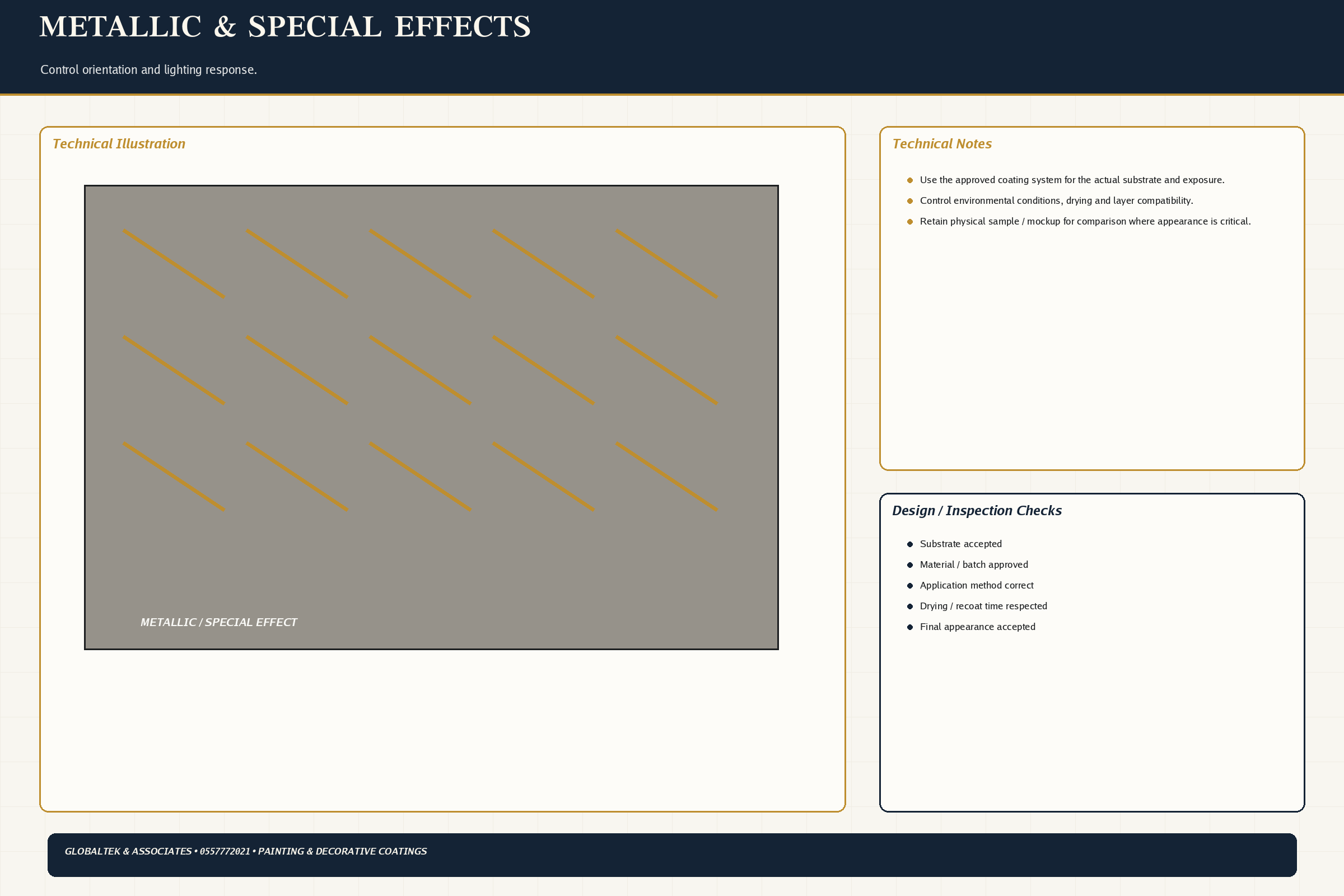

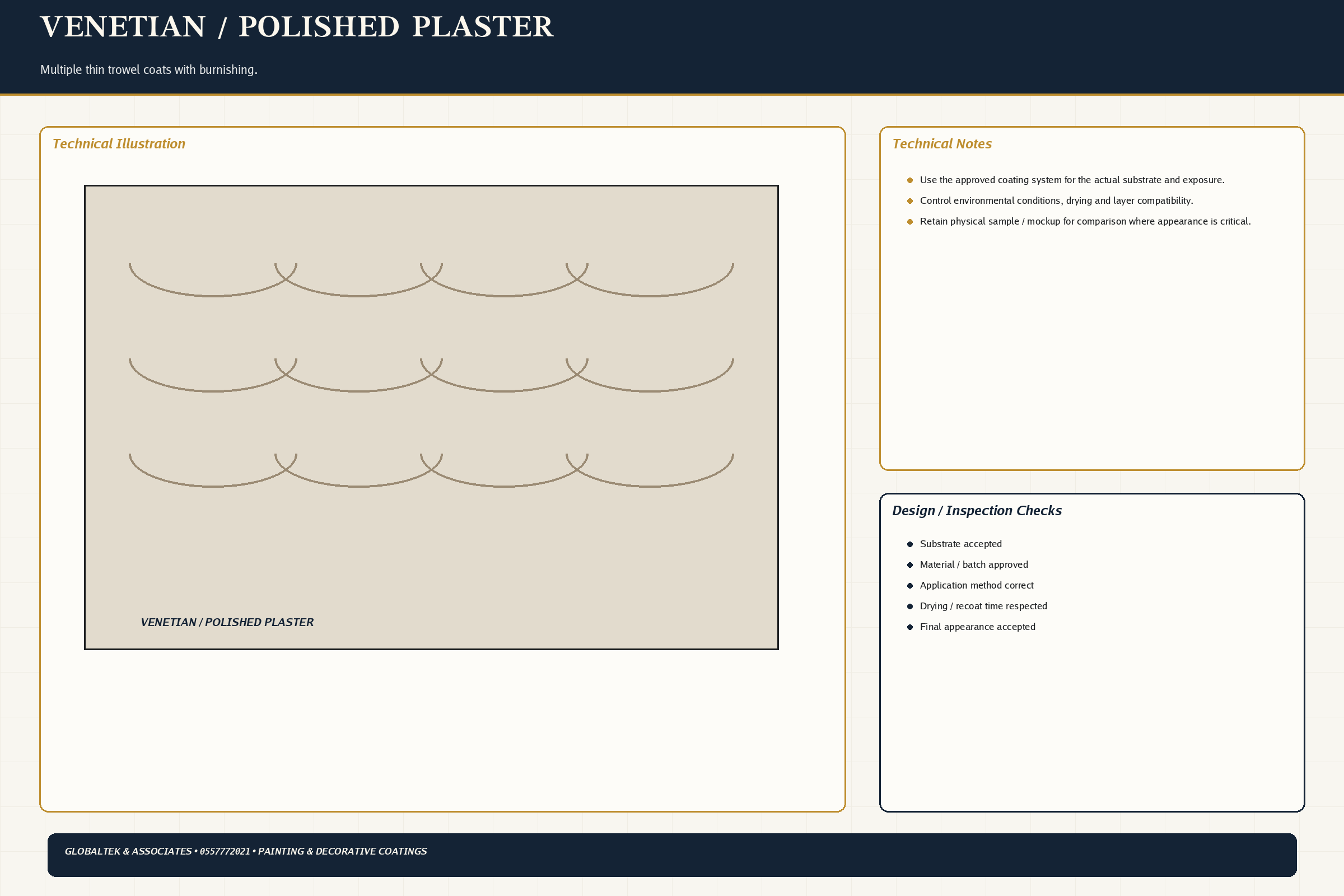

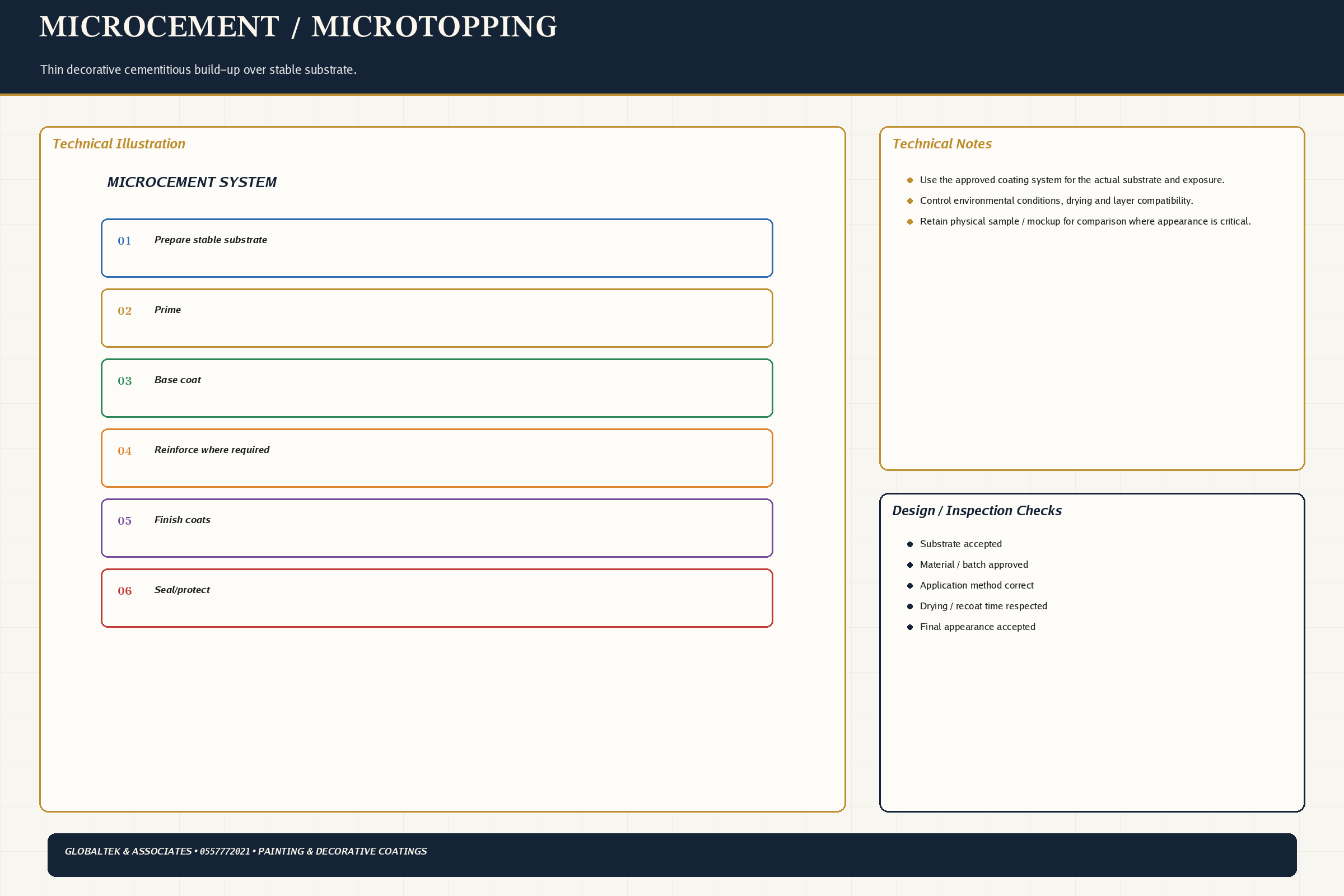

Feature coatings
Textured, metallic, microcement-like or decorative systems
What the drawing is showing
Textured, metallic, microcement-like or decorative systems Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Drying
Respect recoat time and ventilation requirements
Inspection / QA
Edges / cut lines are clean
Best practice
Repair root cause of cracks before cosmetic filling
Maintenance / long-term performance
Avoid aggressive cleaners on decorative / metallic coatings

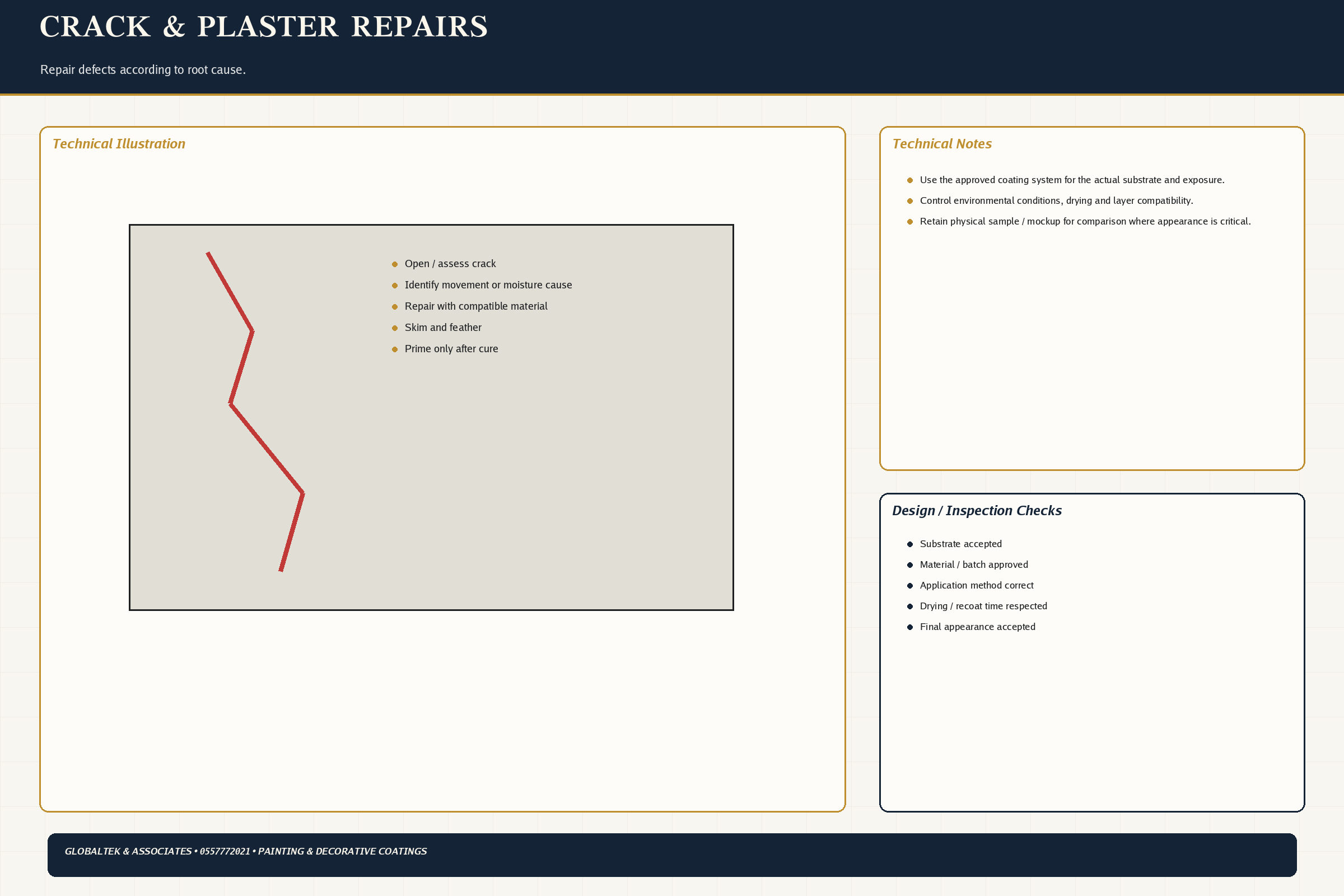

SUB-ACTIVITY 06 · Repair · OPEN FULL PLATE ↗SUB-ACTIVITY 06

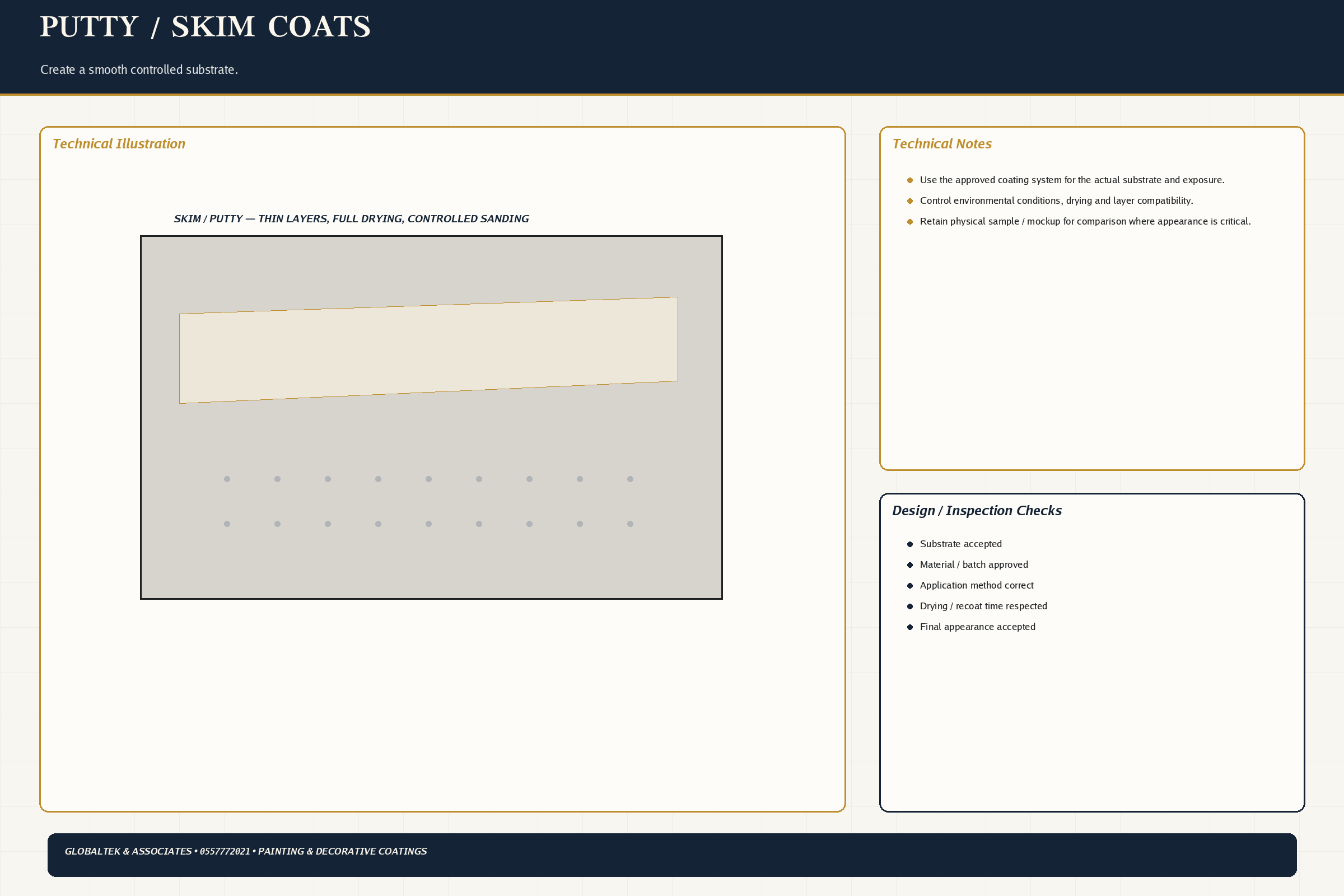

Repair
Crack treatment, filler, skim and patching
What the drawing is showing
Crack treatment, filler, skim and patching Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.

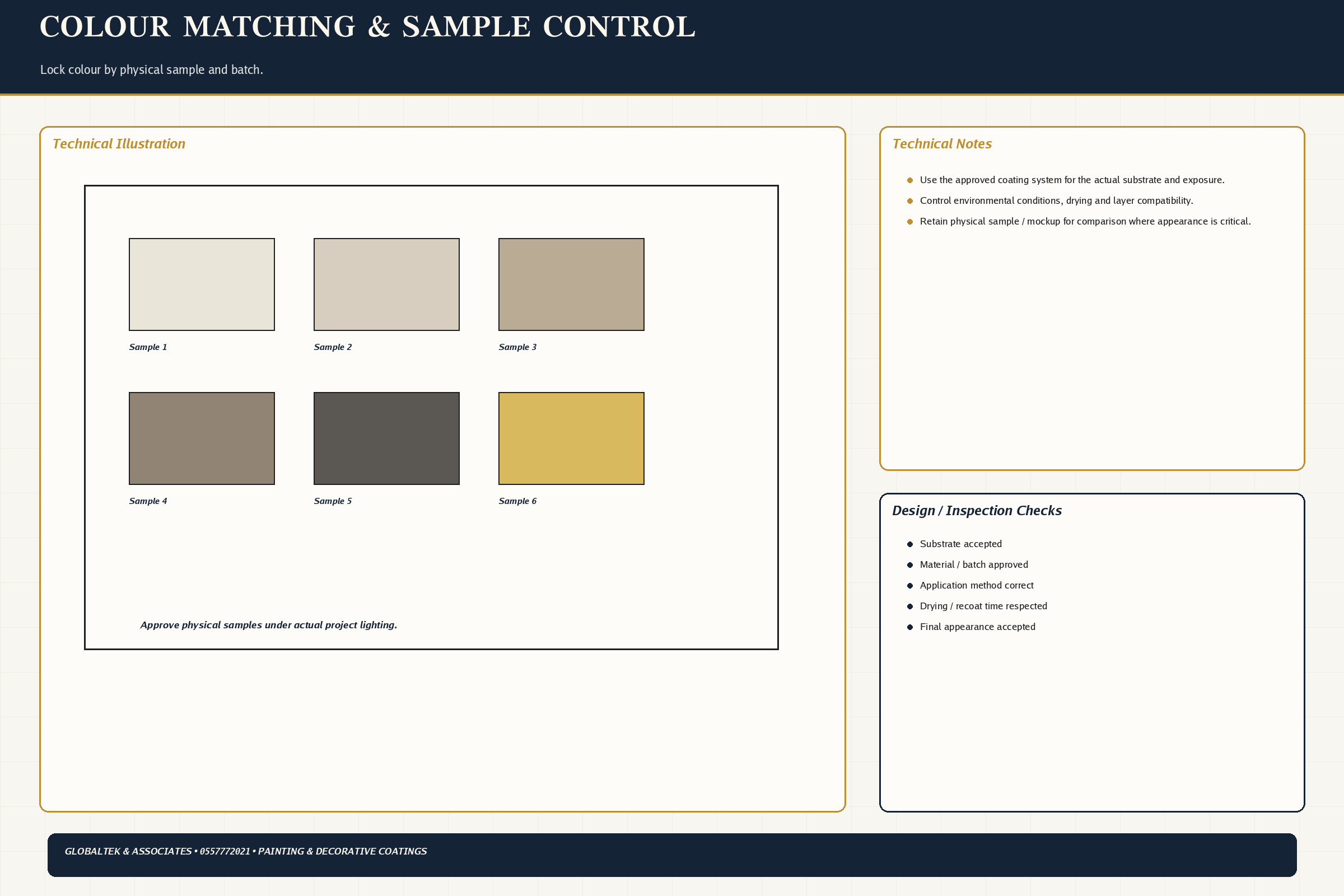

Colour
Use consistent batch / tinting and box paint for large critical areas
Inspection / QA
Final inspection is under representative lighting
Best practice
Keep touch-up paint labelled by room / colour code
Maintenance / long-term performance
Recoat high-wear areas when film is worn rather than after substrate damage

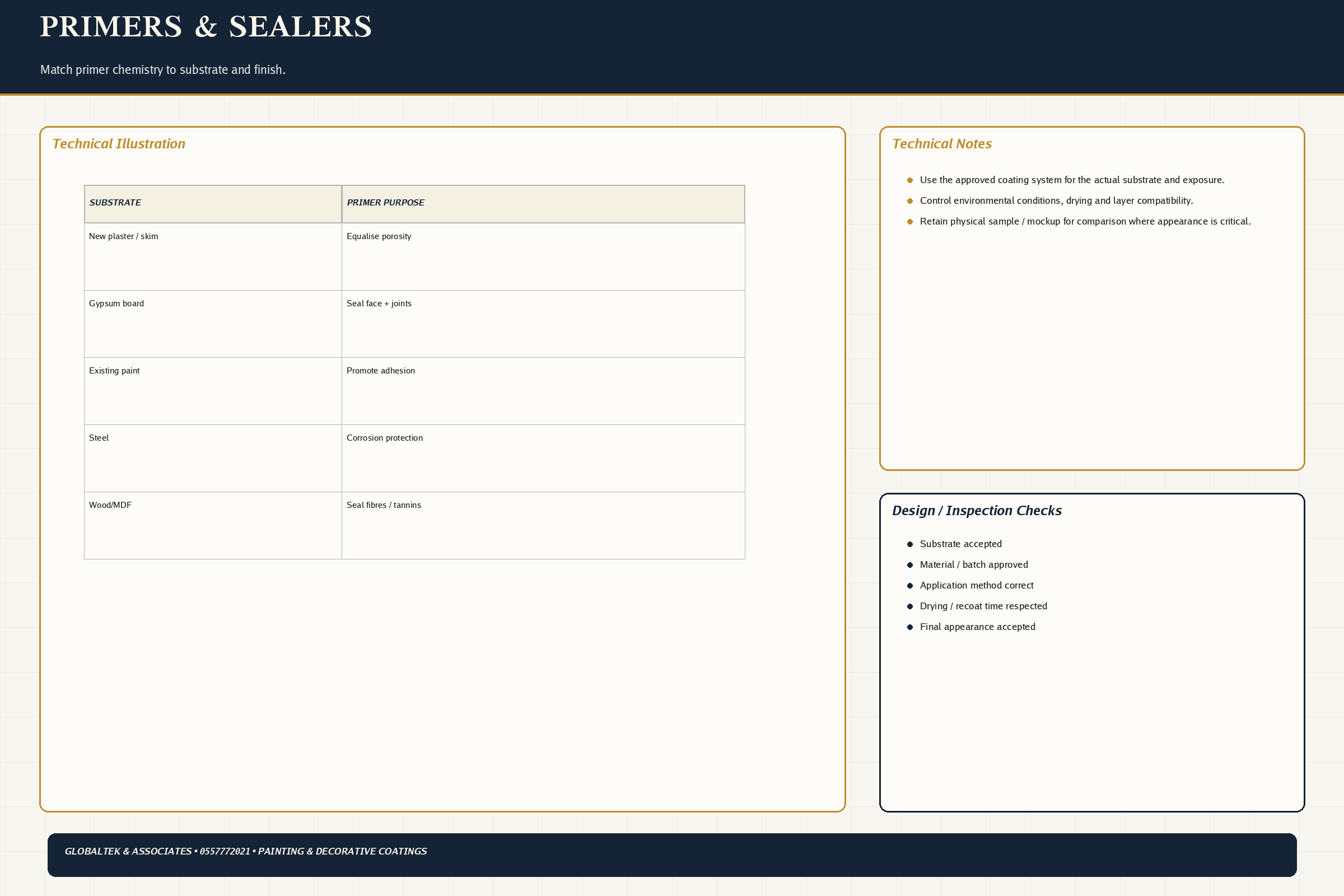

SUB-ACTIVITY 07 · Primer · OPEN FULL PLATE ↗SUB-ACTIVITY 07
Primer
Substrate-specific adhesion / sealing coat
What the drawing is showing
Substrate-specific adhesion / sealing coat Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Lighting
Inspect premium surfaces under actual final illumination
Inspection / QA
Substrate is dry, sound and correctly prepared
Best practice
Finish wet trades and solve leaks before painting
Maintenance / long-term performance
Clean according to sheen / washability rating

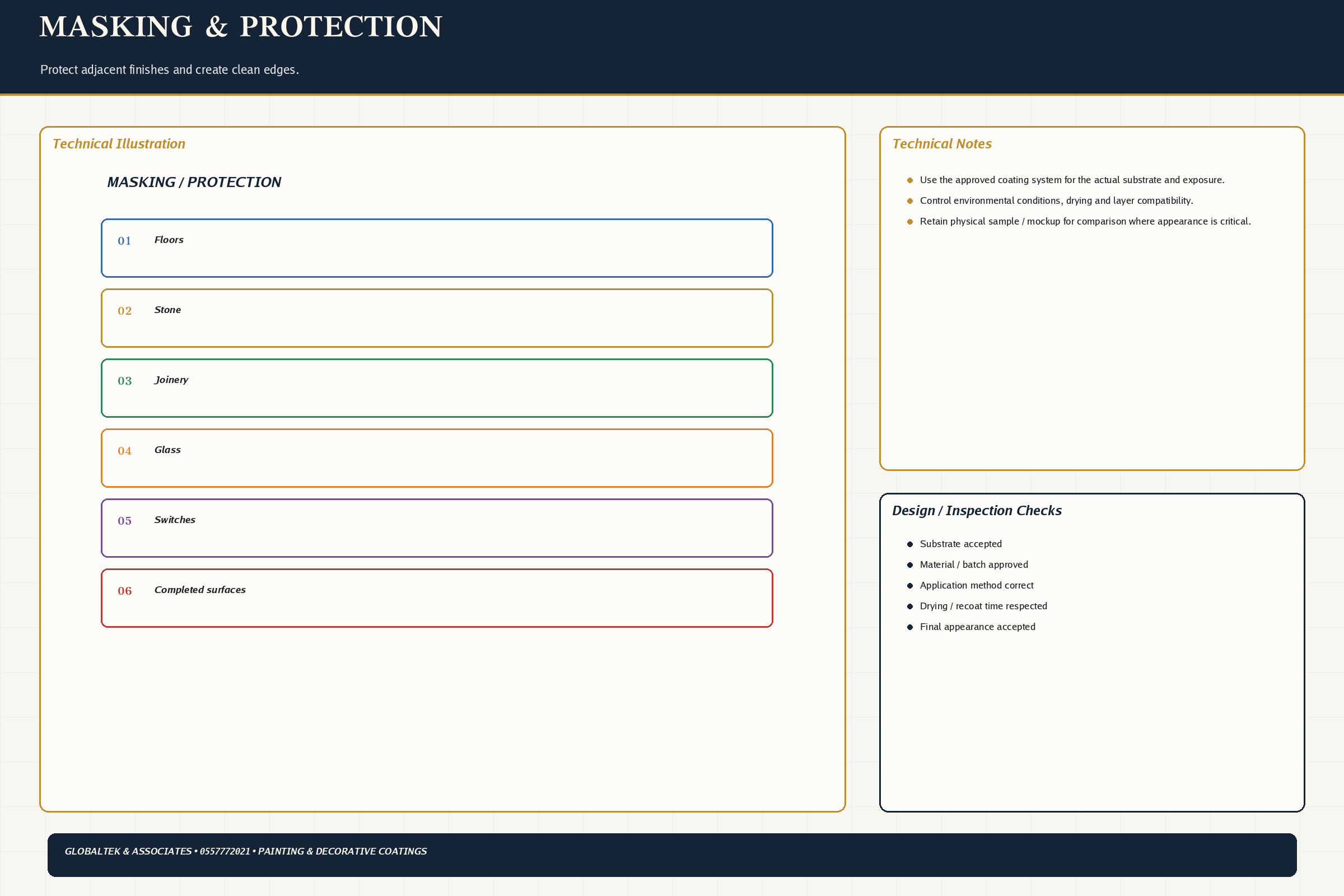

SUB-ACTIVITY 08 · Protection · OPEN FULL PLATE ↗SUB-ACTIVITY 08
Protection
Masking and control of dust / contamination
What the drawing is showing
Masking and control of dust / contamination Read the drawing as a coordination reference: identify the system build-up, interfaces, supports, access points and adjoining work before approving the detail for construction.
Edges
Keep crisp junctions at ceilings, frames, panels and feature materials
Inspection / QA
Primer is compatible with substrate and finish system
Best practice
Approve colour under project lighting
Maintenance / long-term performance
Touch up with retained batch / colour reference after proper surface prep
05 · SPECIFICATIONS & STANDARDS
Turn the drawing into measurable requirements
These are reference frameworks. The latest approved project specification, authority requirement, tested system and manufacturer literature govern the actual installation.
MoistureDo not coat damp substrates outside manufacturer limits
Surface profileSand / skim to finish level appropriate to final sheen and lighting
PrimerMatch porous, alkaline, stained, timber or metal substrate
Coat countApply required number and film build rather than trying to cover in one heavy coat
DryingRespect recoat time and ventilation requirements
ColourUse consistent batch / tinting and box paint for large critical areas
LightingInspect premium surfaces under actual final illumination
EdgesKeep crisp junctions at ceilings, frames, panels and feature materials

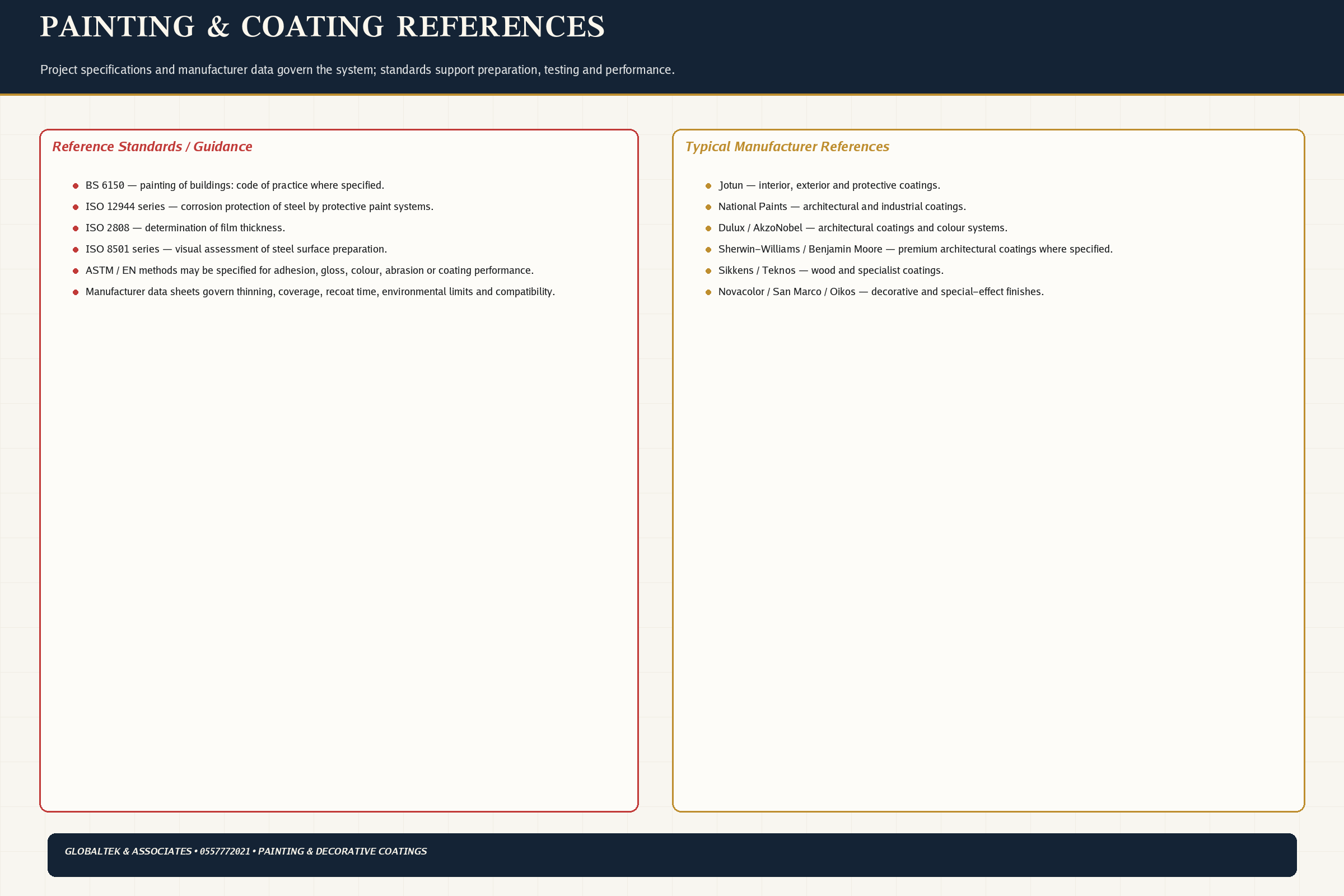

Reference framework
• Manufacturer technical data sheets for substrate, primer, coverage and drying
• Project VOC / sustainability criteria where applicable
• Fire-performance requirements for decorative systems in regulated locations

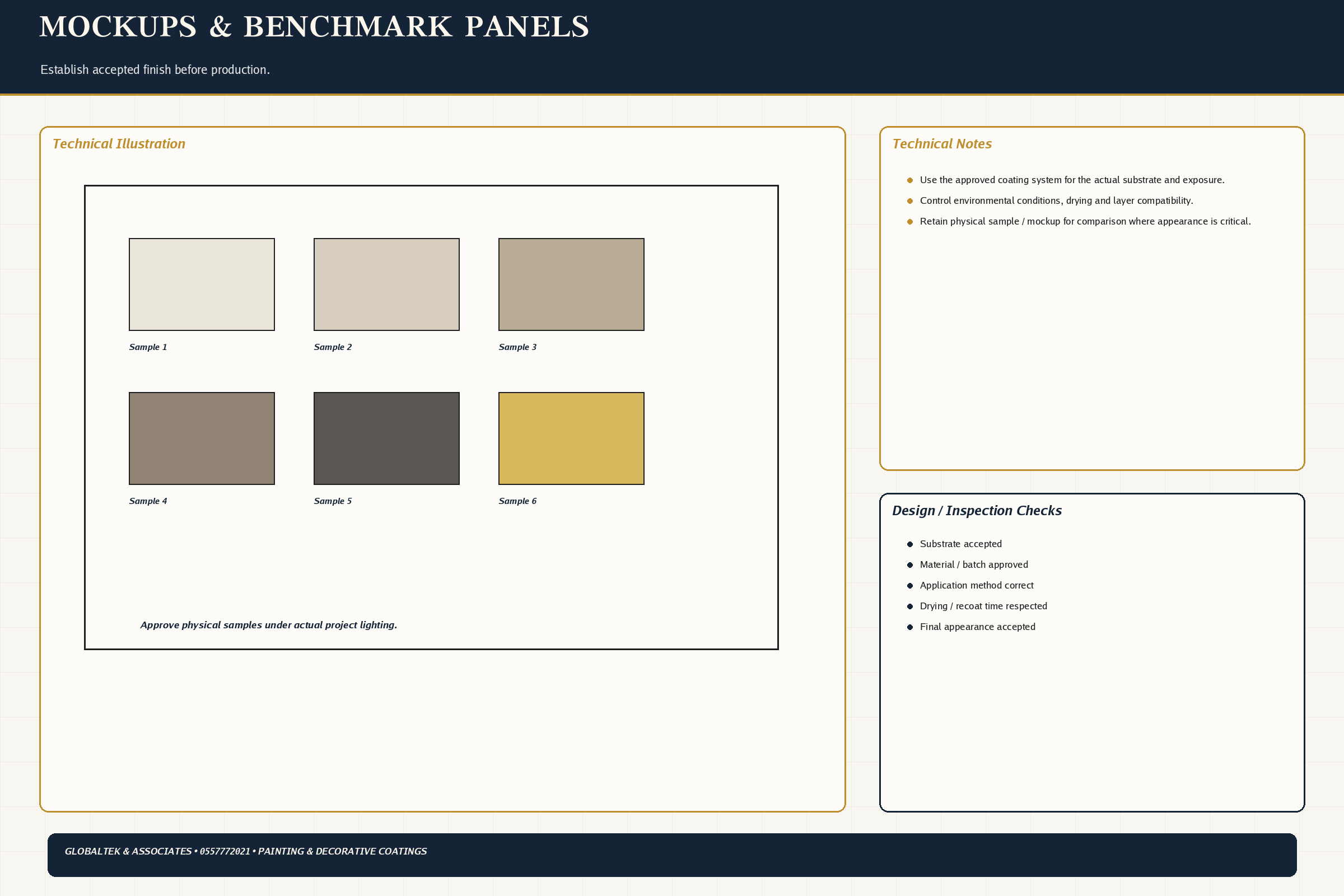

• Approved colour / sheen sample and mock-up
• Surface-preparation standards referenced by coating manufacturer / project specification
• Environmental limits for temperature / humidity during application
06 · INSPECTION & QA/QC
Do not cover what has not been verified
01Substrate is dry, sound and correctly prepared
02Primer is compatible with substrate and finish system
03Colour / sheen match approved sample
04Coverage is uniform without roller marks, flashing or contamination
05Edges / cut lines are clean
06Final inspection is under representative lighting

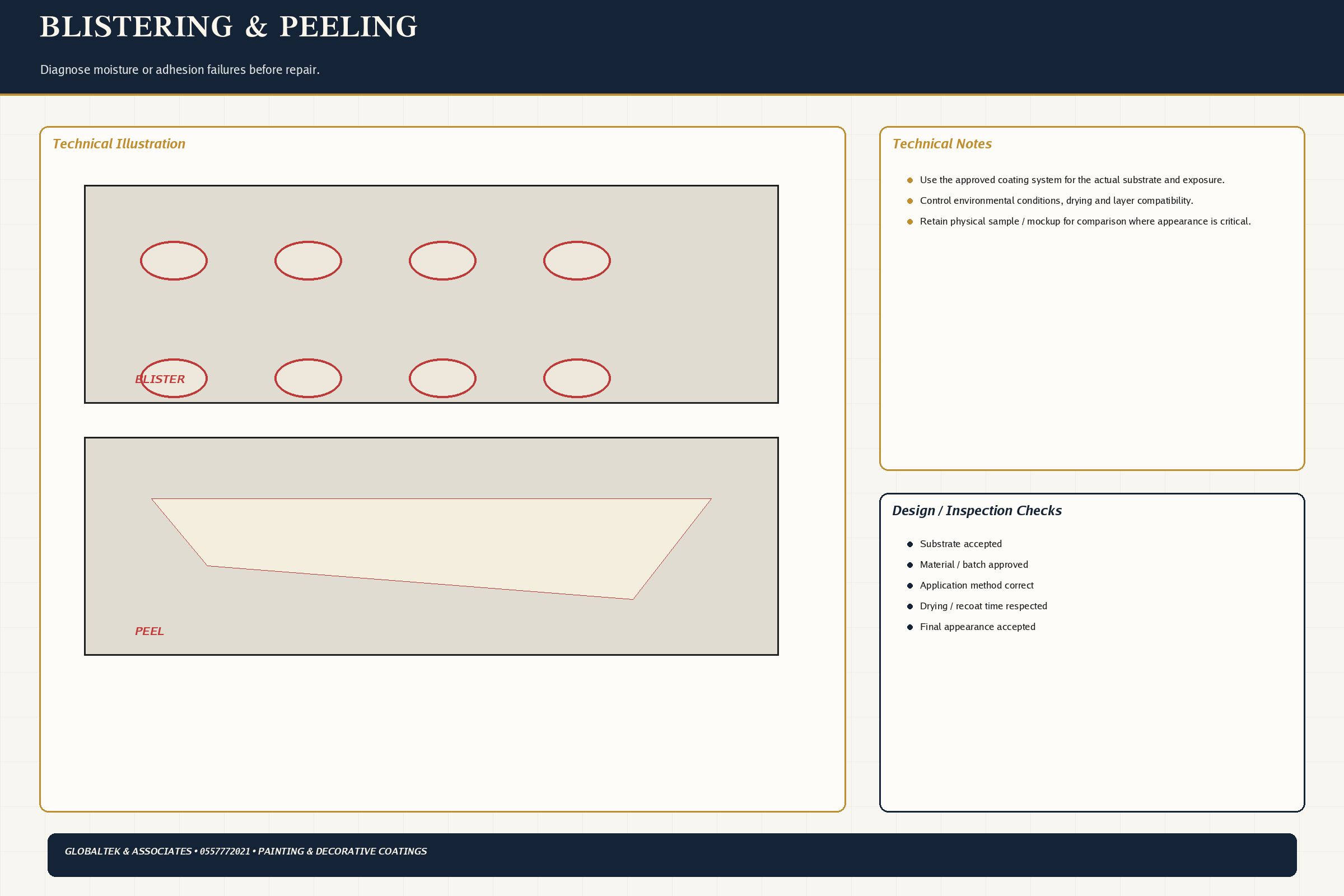

07 · FAILURES & MAINTENANCE
Understand how good work fails later
Common failures to avoid
× Painting damp gypsum or plaster
× Skipping primer on porous / patched surfaces
× Applying thick coats to hide poor preparation
× Touching up glossy walls in isolated spots that flash under light
× Using incompatible solvent / water-based layers
× Painting before ceiling / MEP dusty work is finished
Maintenance and aftercare
✓ Clean according to sheen / washability rating
✓ Touch up with retained batch / colour reference after proper surface prep
✓ Investigate moisture staining before repainting
✓ Maintain sealants so cracks do not repeatedly appear at interfaces
✓ Avoid aggressive cleaners on decorative / metallic coatings
✓ Recoat high-wear areas when film is worn rather than after substrate damage

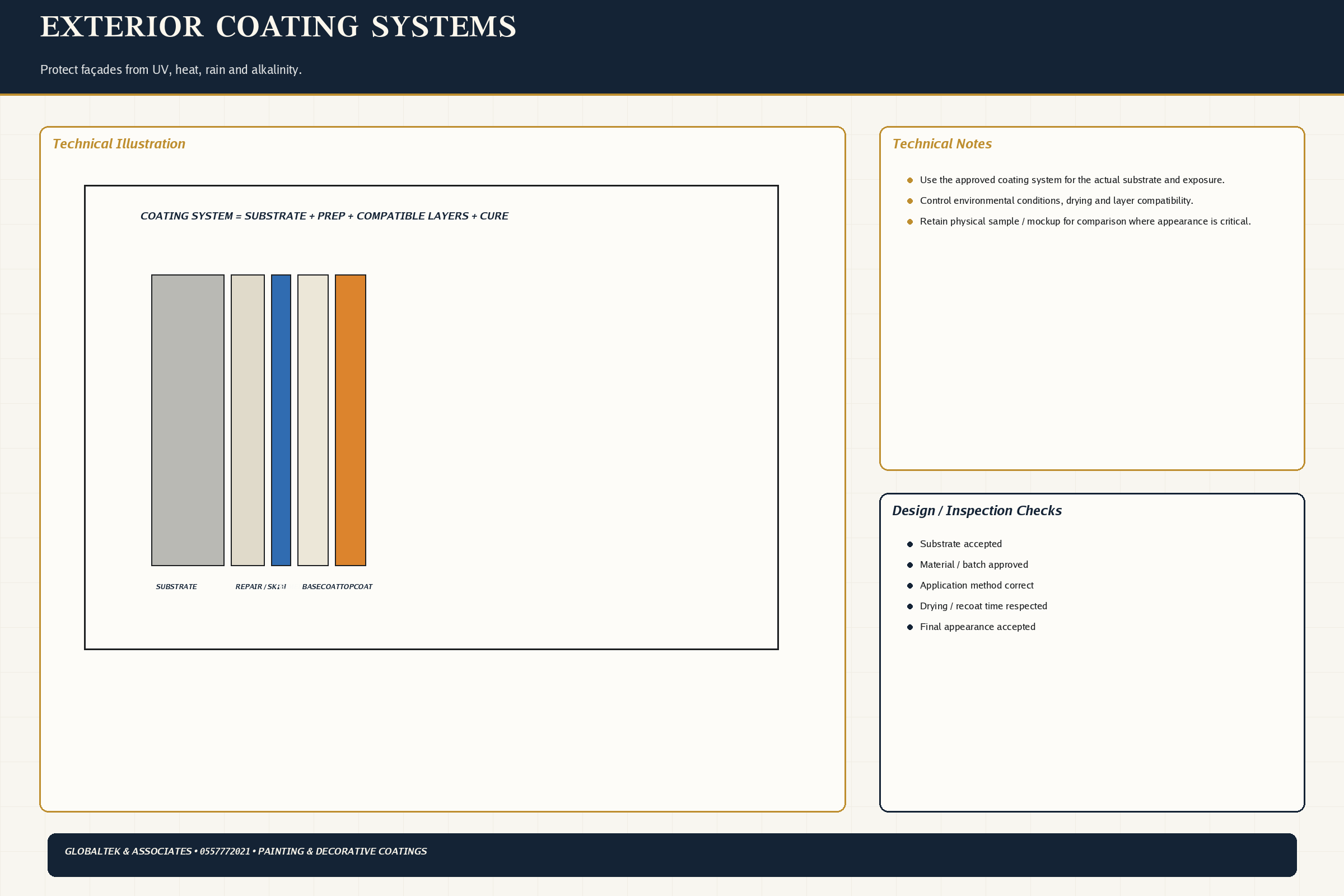

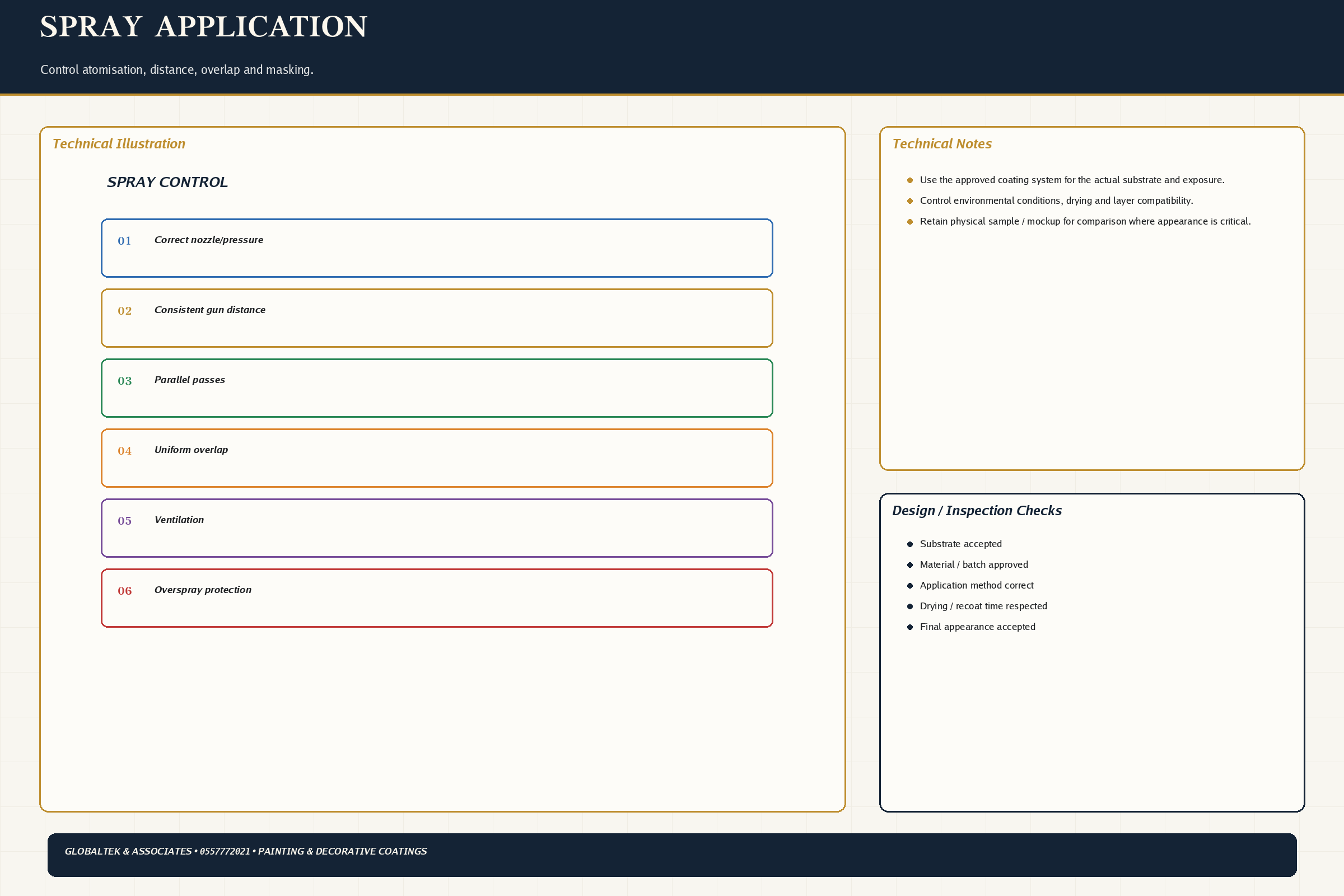

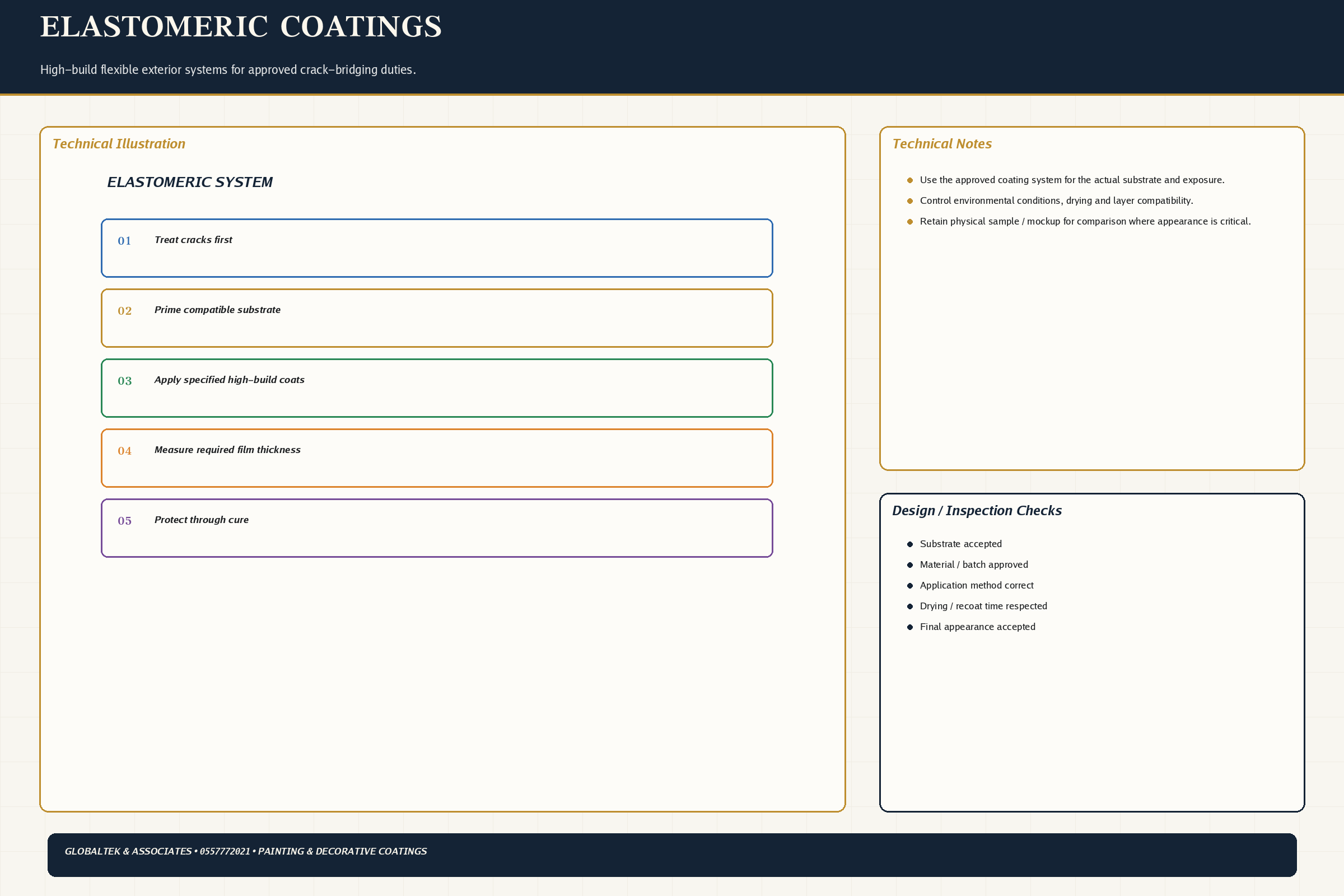

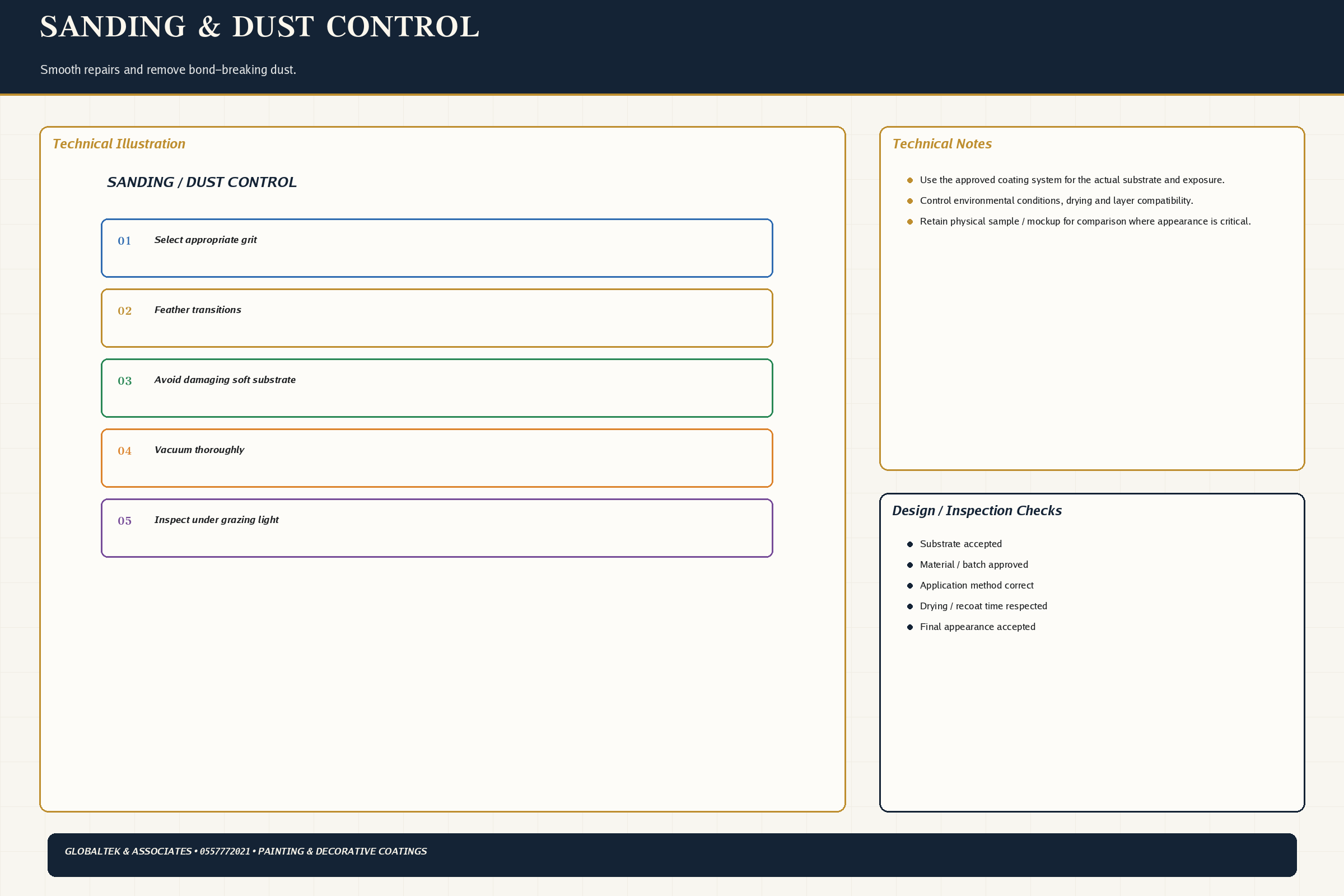

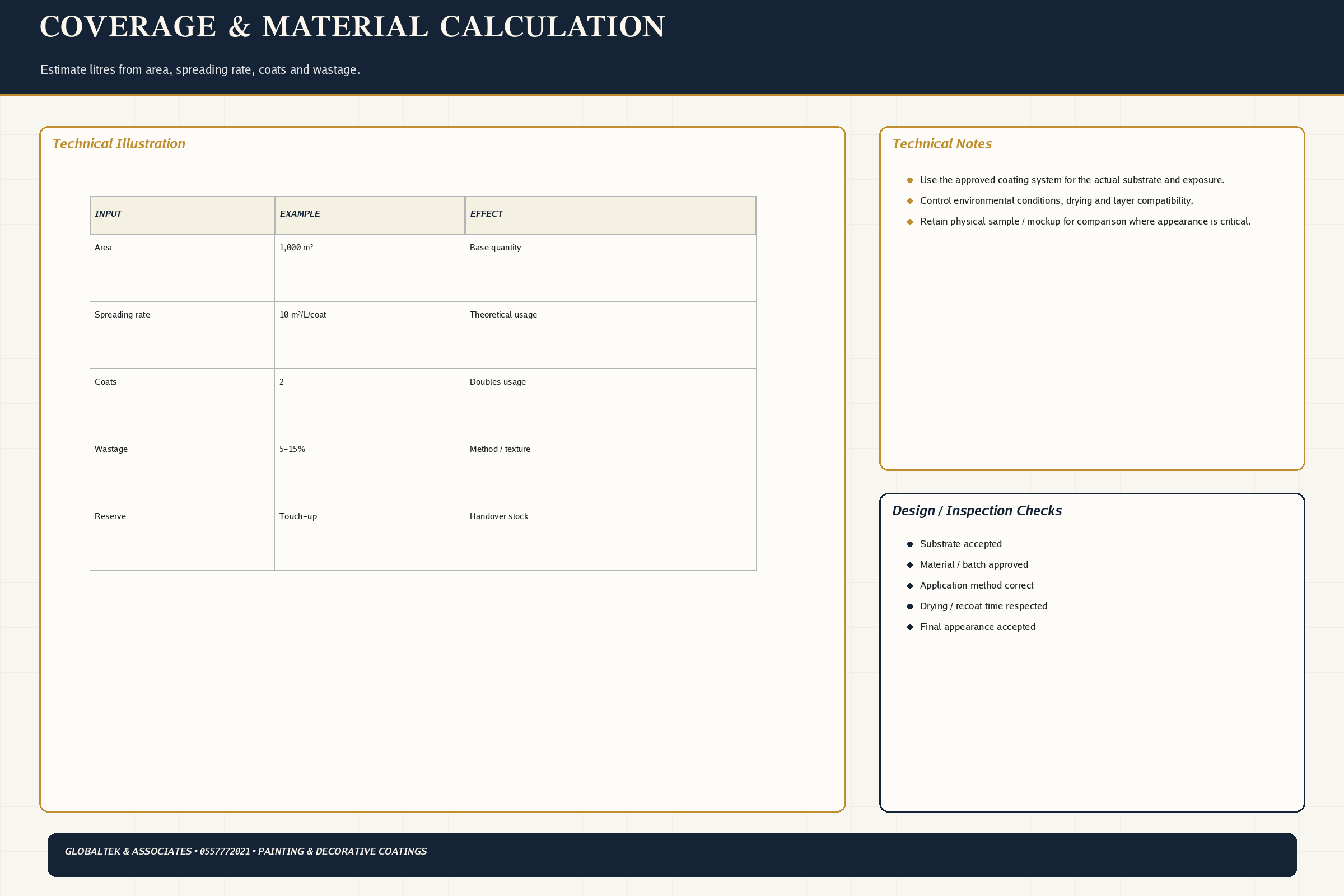

08 · TECHNICAL SKETCH LIBRARY
Every original drawing assigned to this discipline
These are the actual 304-library files supplied for the website. Click any plate for the in-page drawing reader.
09 · PRIMARY TECHNICAL RESOURCES
Manufacturer and producer documentation only
No contractor/competitor reference links are published in this section.
PRIMARY RESOURCEJotun professional coatings↗PRIMARY RESOURCEAkzoNobel coatings↗PRIMARY RESOURCESika protective coatings↗
Technical guidance is educational and indicative. Final design, dimensions, materials, installation details and acceptance criteria must follow the approved project documents, manufacturer instructions and the latest requirements of the relevant UAE authority, landlord, consultant and specialist engineer.
